Lexmark E260 - Rear Door and Rear Cover Removal

Repair information 4-49
4513-200, -220, -230

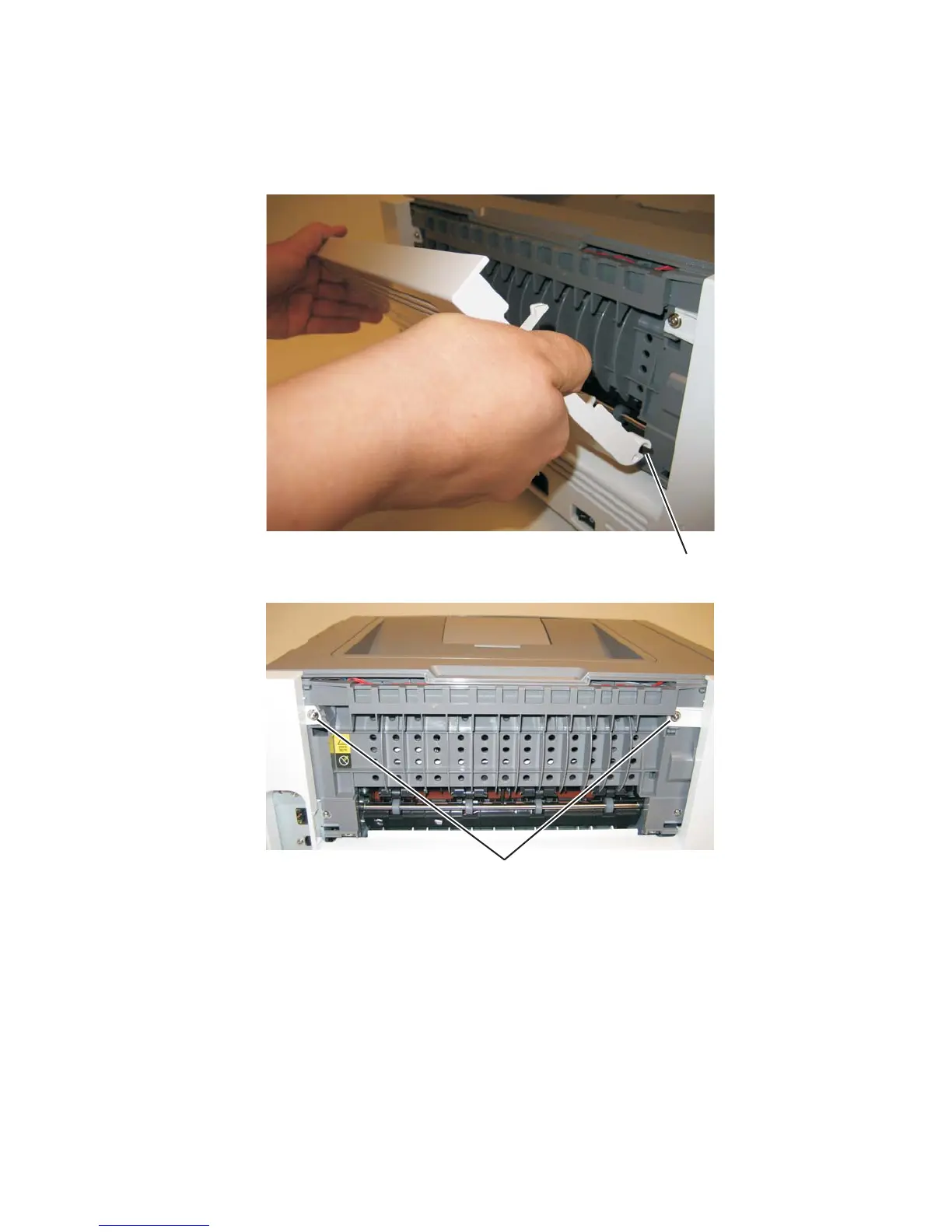

Rear door and rear cover removal
1. Open the rear door.
2. Pull the rear door up at an angle, disconnect the door from the notch (A), and remove.
3. Remove the two screws (B) from the top of the rear cover.
A
B
