4-32 Lexmark™ E260, E260d, E260dn
4513-200, -220, -230
Manual feed clutch removal
1. Remove the left side cover. See “Left side cover removal” on page 4-24.

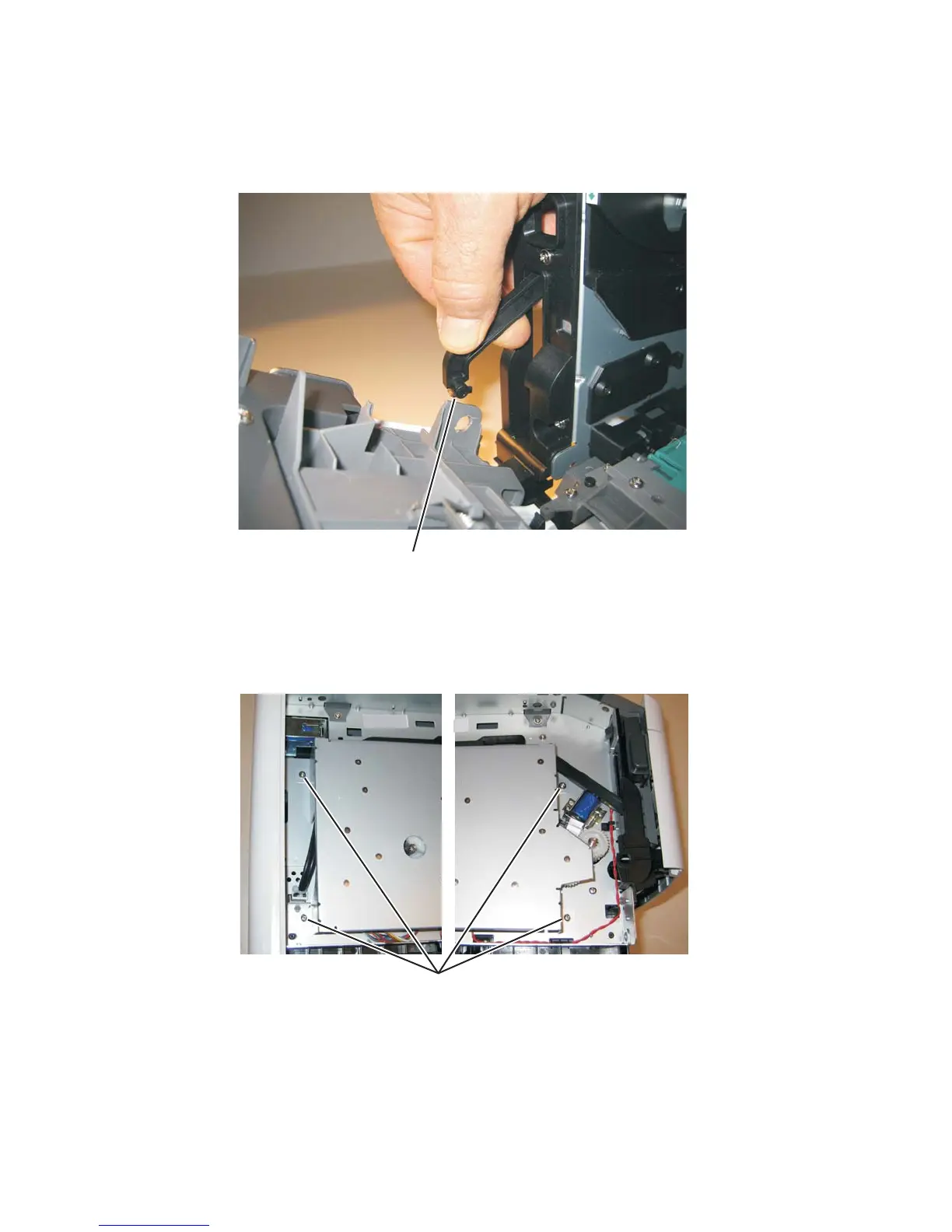

2. Open the front access door, and disconnect the fuser link (A).
3. Close the front access door, and place the printer on its right side.
Note: Be careful to not mar the finish of the printer.
4. Remove the four screws (B) from the main motor gear drive.
5. Rotate the main motor gear drive enough to access the manual feed solenoid.
