Lexmark E260 - Page 135

Repair information 4-25
4513-200, -220, -230

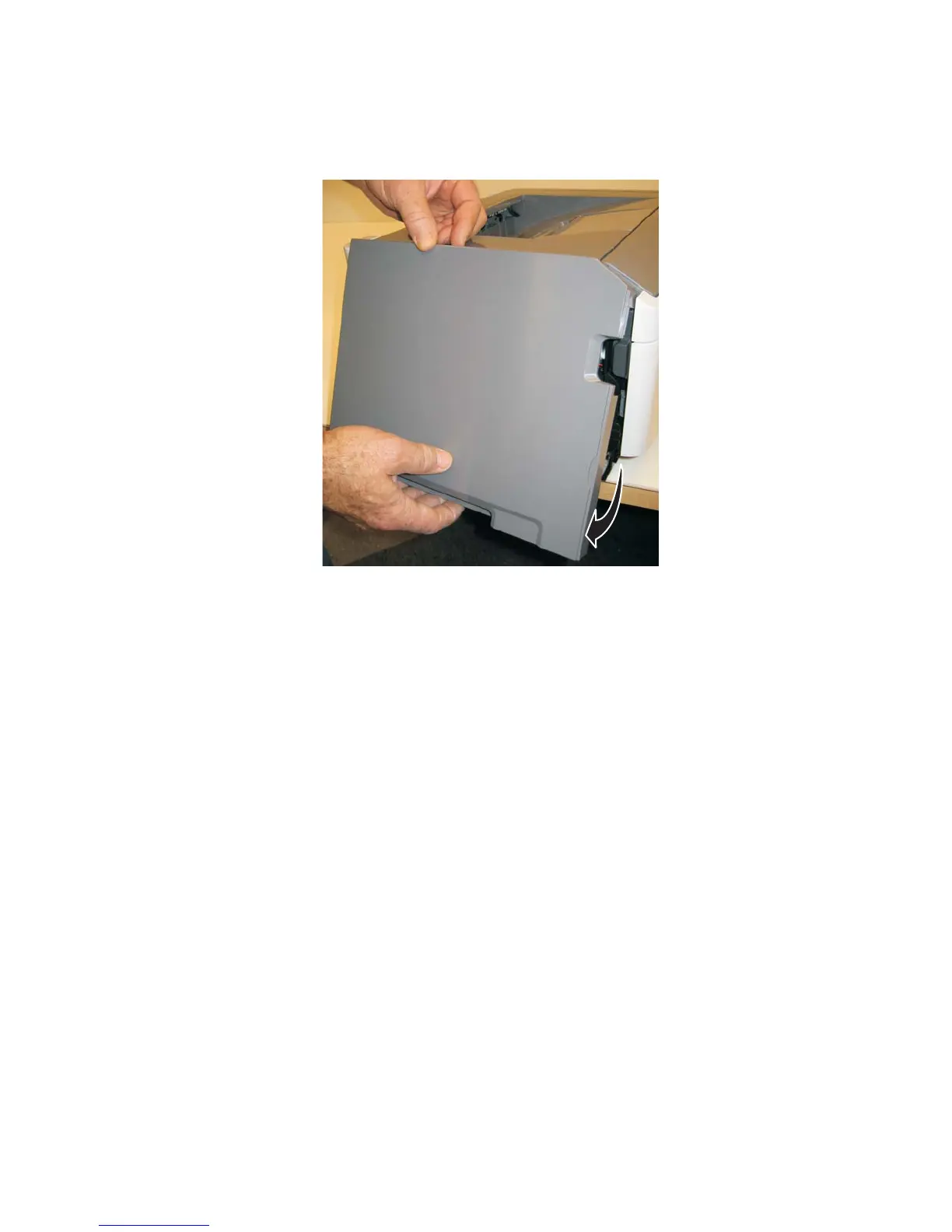

4. Rotate the cover out, and lift to remove the left side cover.
Note: There are two tabs on the top of the left side cover. Do not swing the left side cover open too far, or the
tabs will be damaged.
