Repair information 4-13
4513-220, -230
Duplex/main motor gear drive interface removal
1. Remove the left side cover. See “Left side cover removal” on page 4-23.
2. Remove the LVPS/HVPS. See “LVPS/HVPS removal” on page 4-26.
3. Remove the duplex. See “Duplex removal” on page 4-11.
4. Remove the main motor gear drive. See “Main motor gear drive removal” on page 4-29

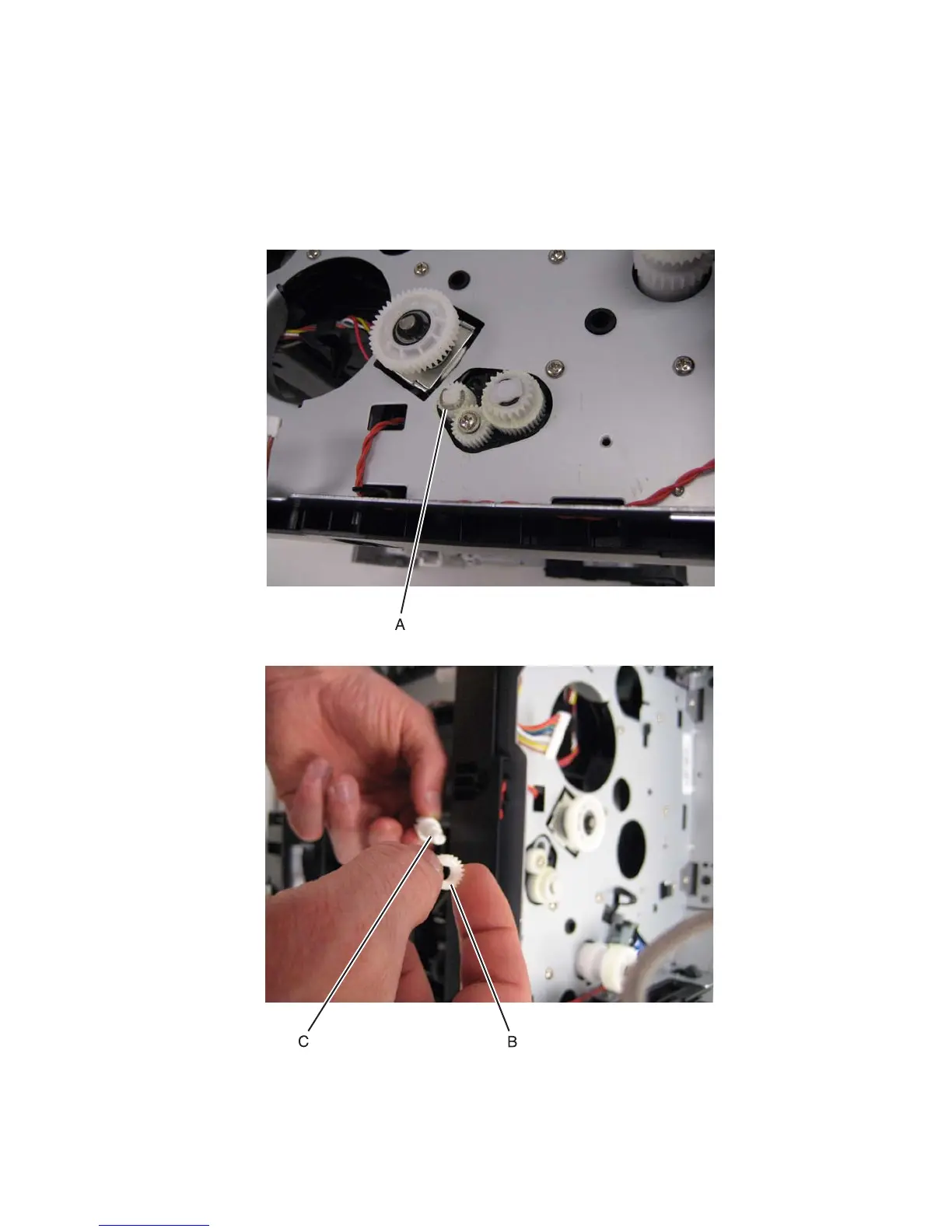

5. Remove the e-clip (A) from the gear.
6. Remove the gear (B) and gear shaft (C).
