Lexmark E260dn User Manual

Repair information 4-29
4513-220, -230
Main motor gear drive removal

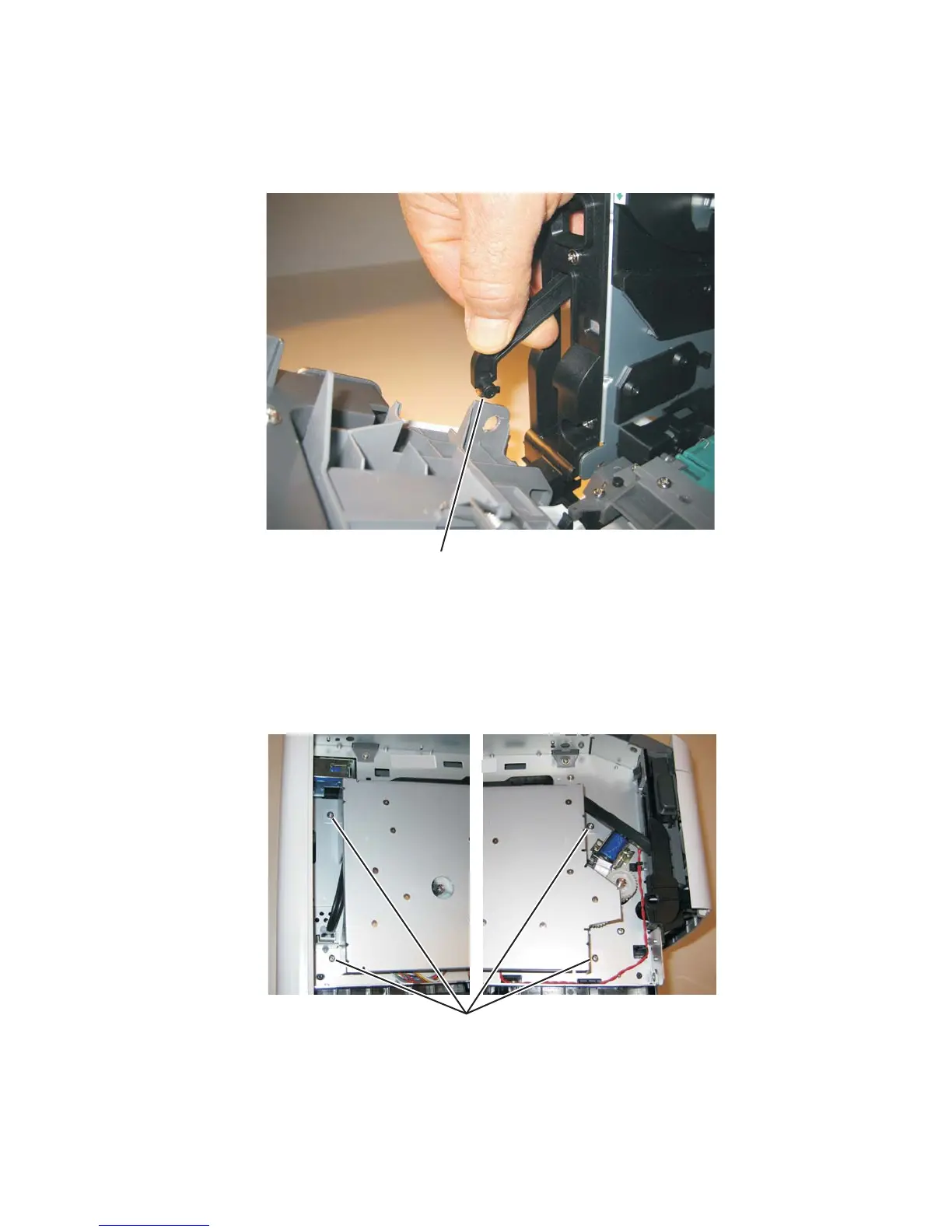

1. Remove the left side cover. See “Left side cover removal” on page 4-23.
2. Open the front access door, and disconnect the fuser link (A).
3. Place the printer on its right side.
Note: Be careful to not mar the finish of the printer.
4. Remove the four screws (B) from the main motor gear drive.
Note: The picture below shows the E360d, E360dn printer. The main motor gear drive removal is the same for
all models.
A
B

Lexmark E260dn Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Duplex print speed (black, normal quality, A4/US Letter)	17 ppm
Internal memory	32 MB
Processor frequency	400 MHz
Maximum internal memory	160 MB
Sound pressure level (printing)	53 dB
Sound pressure level (duplex printing)	52 dB
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Multi-Purpose tray input capacity	1 sheets
Networking features	Fast Ethernet
Standard input trays	2
Pallet weight (imperial)	656 lbs
Compatible operating systems	Microsoft Windows Server 2000/2003 Microsoft Windows Vista/XP Apple Mac OS X Apple Mac OS 9.x Linux
Copy speed (black, normal quality, A4)	33 cpm
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Paper tray media types	Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), index card, Letter (media size), Statement (140 x 216mm)
JIS B-series sizes (B0...B9)	B5
Maximum duty cycle	50000 pages per month
Power consumption (standby)	12 W
Power consumption (printing)	470 W
Power consumption (PowerSave)	11 W
Pallet weight	298000 g
Quantity per pallet	18 pc(s)
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	FCC Class B, UL 60950-1 3rd Edition, U.S. FDA, IEC 320-1, CSA, ICES Class B, Energy Star, CE Class B, CB IEC 60950-1, IEC 60825-1, GS (TÜV), SEMKO, UL AR, CS, TÜV Rh, N Mark, ACA C-tick Class B, CCC Class B, BSMI Class B, MIC, EK Mark, PSB

Weight and Dimensions

Dimensions (WxDxH)	370 x 260 x 406 mm
