4-38 Lexmark™ E260d, E260dn
4513-220, -230
Media feed clutch with cable removal
1. Remove the main motor gear drive. See “Main motor gear drive removal” on page 4-29.
2. Remove the duplex. See “Duplex removal” on page 4-11.

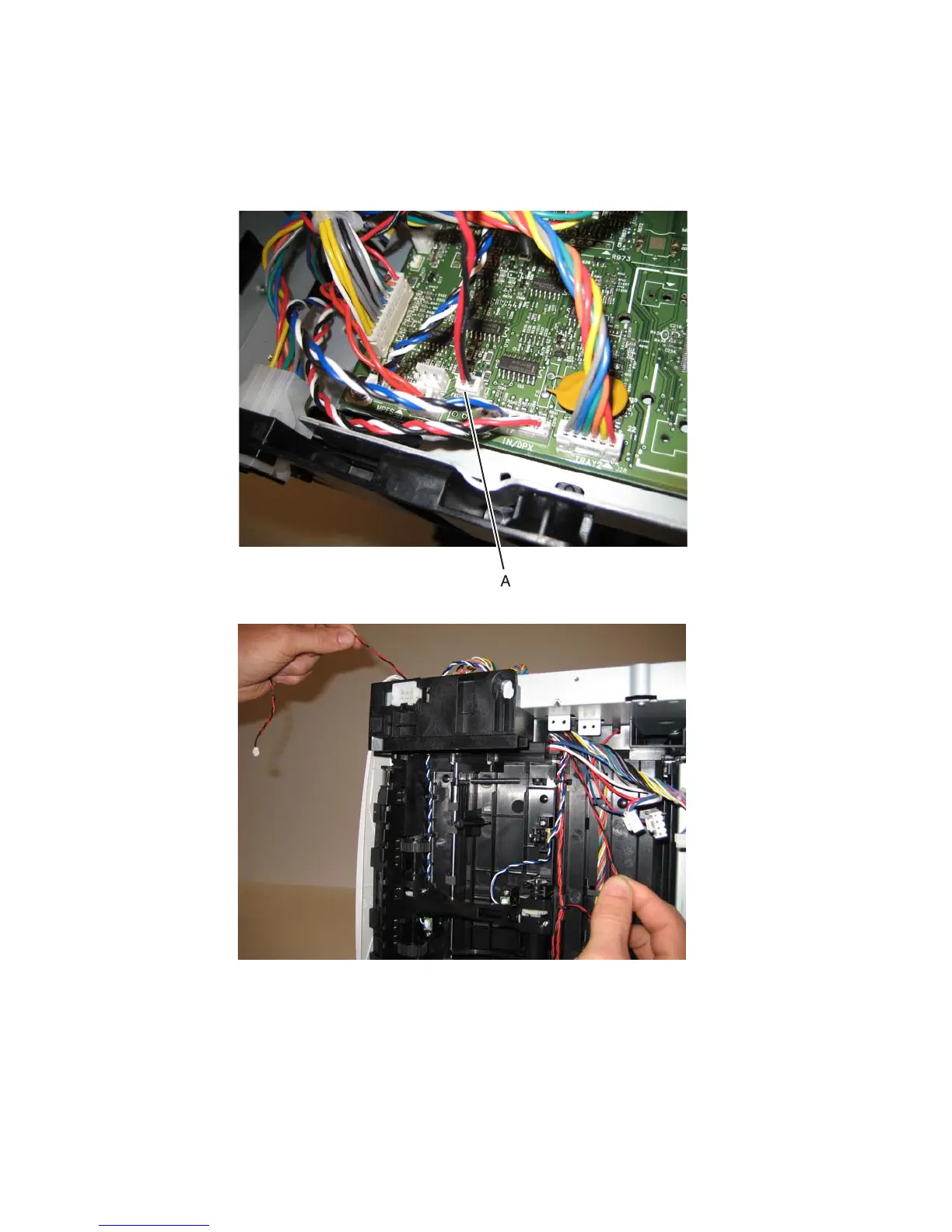

3. Disconnect the media feed clutch cable (A) from the controller board.
4. Unroute the cable from the bottom of the printer.
