Lexmark E260dn User Manual

Repair information 4-55
4513-220, -230
Transfer roll removal
Note: A flashlight may be required to remove the transfer roll.
1. Open the front access door.

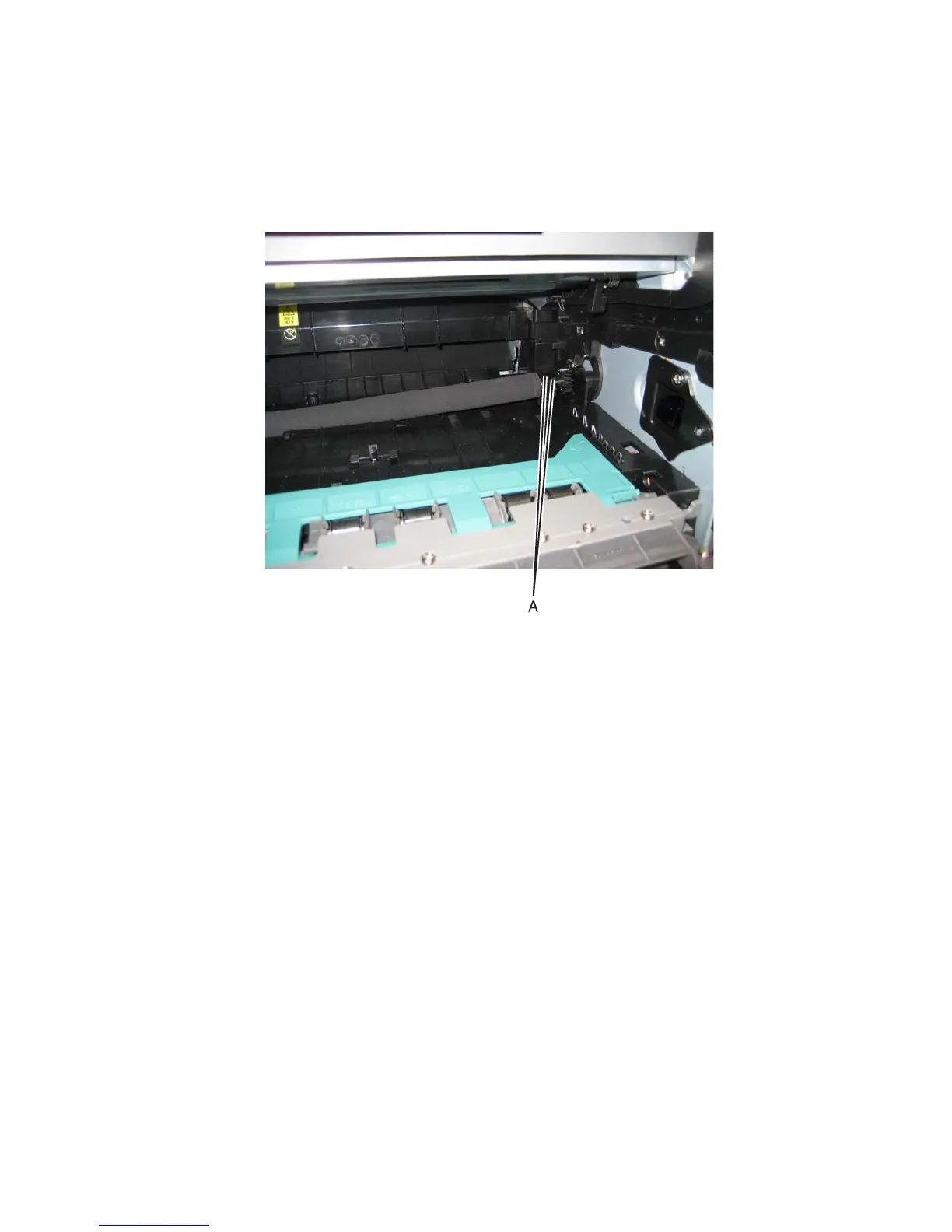

2. At the right side of the transfer roll, squeeze the holder arms (A) with the left hand while lifting. Stop when
the holder is unlatched.
3. At the left side of the transfer roll, squeeze the holder arms with the right hand while lifting with the left
hand. Stop when the left holder is unlatched.
4. With a hand at each end, lift the transfer roll out.
Note: Do not try removing the spring on the left; it is not removeable but can be dislodged. The spring included
with the FRU is to be used only if the old right-side spring is damaged or lost. Both springs must be positioned
on posts that cannot be seen. If the old springs are moved, then feel the base of the springs to assure that they
are on the posts. The top of the springs must be captured in the bearings of the transfer roll.

Lexmark E260dn Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Duplex print speed (black, normal quality, A4/US Letter)	17 ppm
Internal memory	32 MB
Processor frequency	400 MHz
Maximum internal memory	160 MB
Sound pressure level (printing)	53 dB
Sound pressure level (duplex printing)	52 dB
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Multi-Purpose tray input capacity	1 sheets
Networking features	Fast Ethernet
Standard input trays	2
Pallet weight (imperial)	656 lbs
Compatible operating systems	Microsoft Windows Server 2000/2003 Microsoft Windows Vista/XP Apple Mac OS X Apple Mac OS 9.x Linux
Copy speed (black, normal quality, A4)	33 cpm
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Paper tray media types	Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), index card, Letter (media size), Statement (140 x 216mm)
JIS B-series sizes (B0...B9)	B5
Maximum duty cycle	50000 pages per month
Power consumption (standby)	12 W
Power consumption (printing)	470 W
Power consumption (PowerSave)	11 W
Pallet weight	298000 g
Quantity per pallet	18 pc(s)
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	FCC Class B, UL 60950-1 3rd Edition, U.S. FDA, IEC 320-1, CSA, ICES Class B, Energy Star, CE Class B, CB IEC 60950-1, IEC 60825-1, GS (TÜV), SEMKO, UL AR, CS, TÜV Rh, N Mark, ACA C-tick Class B, CCC Class B, BSMI Class B, MIC, EK Mark, PSB

Weight and Dimensions

Dimensions (WxDxH)	370 x 260 x 406 mm
