Lexmark E260dn - Page 120

4-24 Lexmark™ E260d, E260dn
4513-220, -230

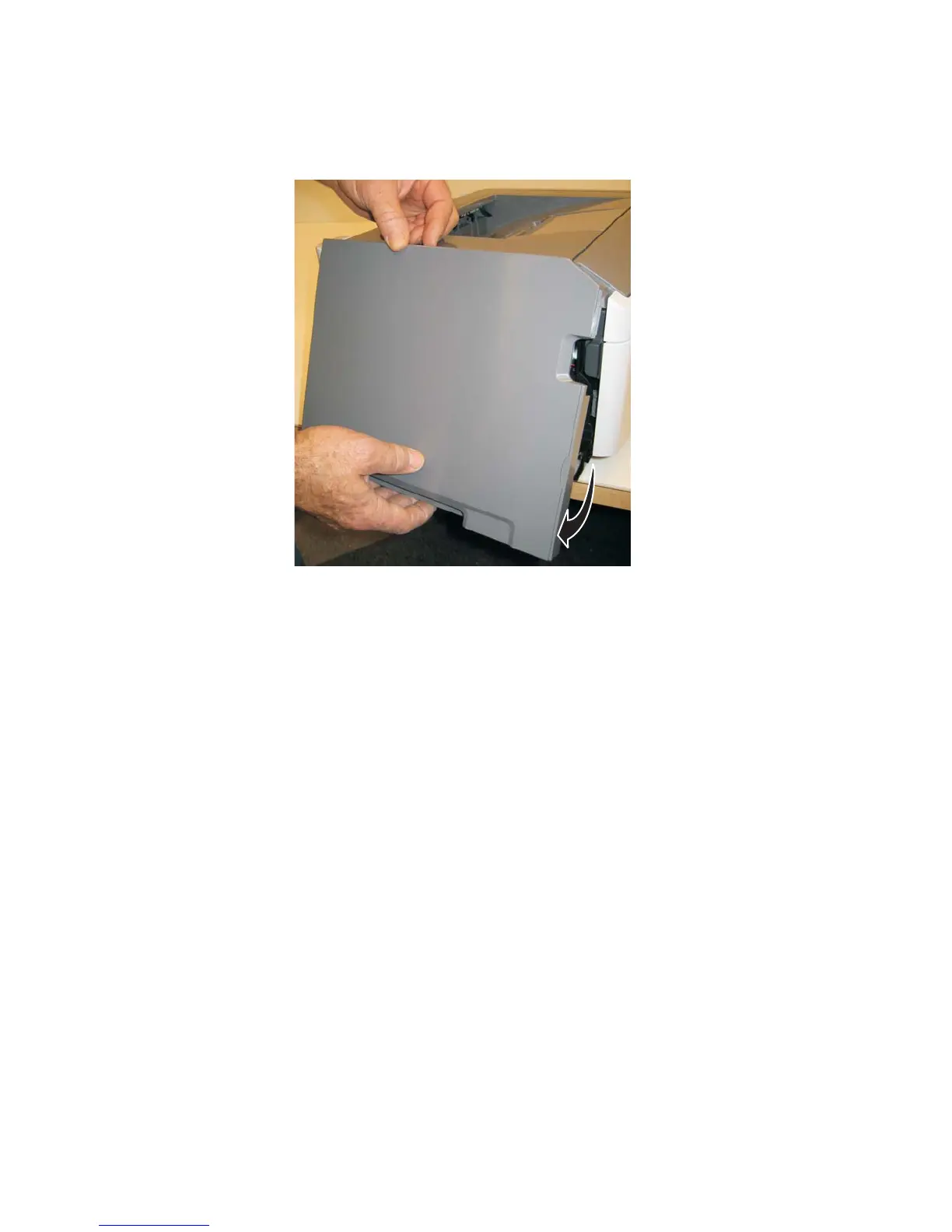

4. Rotate the cover out, and remove the left side cover.
Note: There are two tabs on the top of the left side cover. Do not swing the left side cover open too far, or the
tabs will be damaged.
