Lexmark E450DN - E 450dn B/W Laser Printer - Duplex gear drive

4-20 Lexmark™ E450dn
4512-630
Duplex gear drive
1.
Remove the main motor drive. See “Main motor drive removal” on page 3-28.
2. Remove the duplex. See “Duplex removal” on page 4-18.

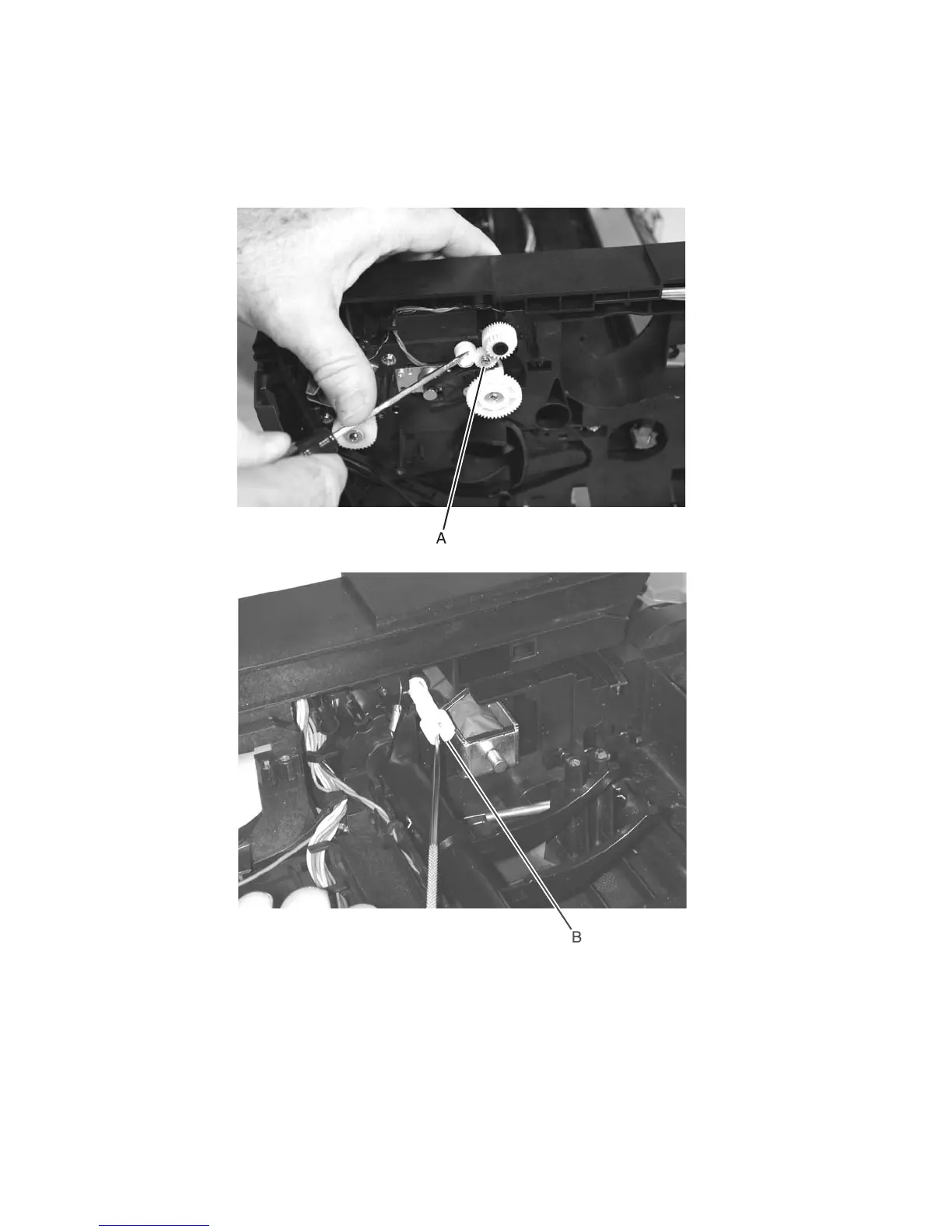

3. Remove the duplex coupling and gears (A) (the screw and plastic retainer).
4. Remove the duplex coupling (B) and mating link.
Note: The link (not shown) that connects the duplex and duplex coupling is part of this FRU as well as the
duplex FRU.
