4-24 Lexmark™ E450dn
4512-630
Fuser power cable removal
1.
Remove the paper exit guide assembly. See “Paper exit guide assembly removal” on page 3-37.
2. Remove the fuser. See “Fuser removal” on page 3-22.
3. Disconnect the power cable from the fuser, and pull the cable through the opening in the side frame.
4. Place the printer on its top with the back and bottom in view.
Note: Be careful not to mar the finish of the printer.

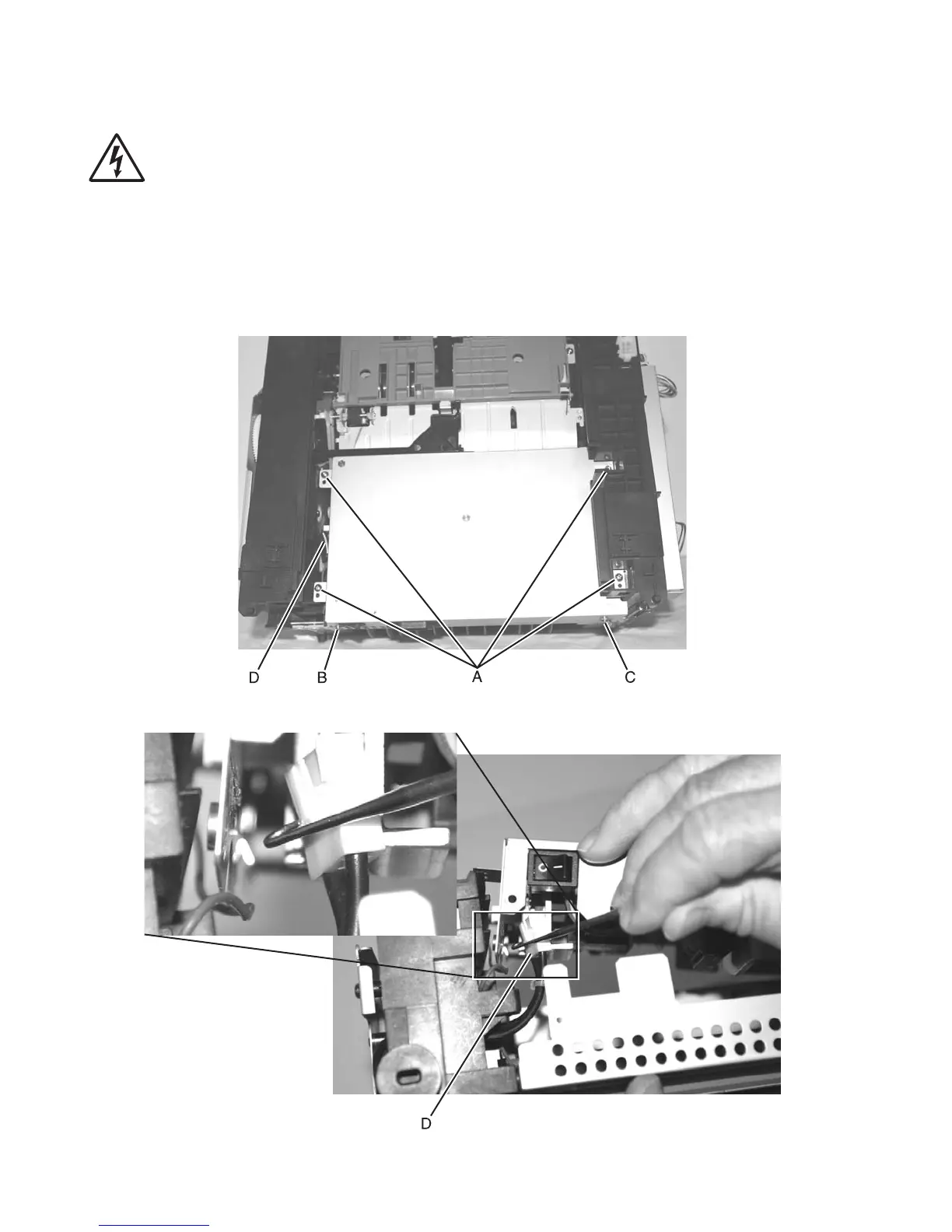

5. Remove the four screws (A), the machine screw (flange head) (B), and the machine screw (button head)
(C).
6. Use the hook end of a spring hook to disconnect the fuser power cable from the LVPS/HVPS side.
Note: The connector latch (D) is toward the side frame as shown.
