General information 1-7
4512-630
Tips on preventing jams

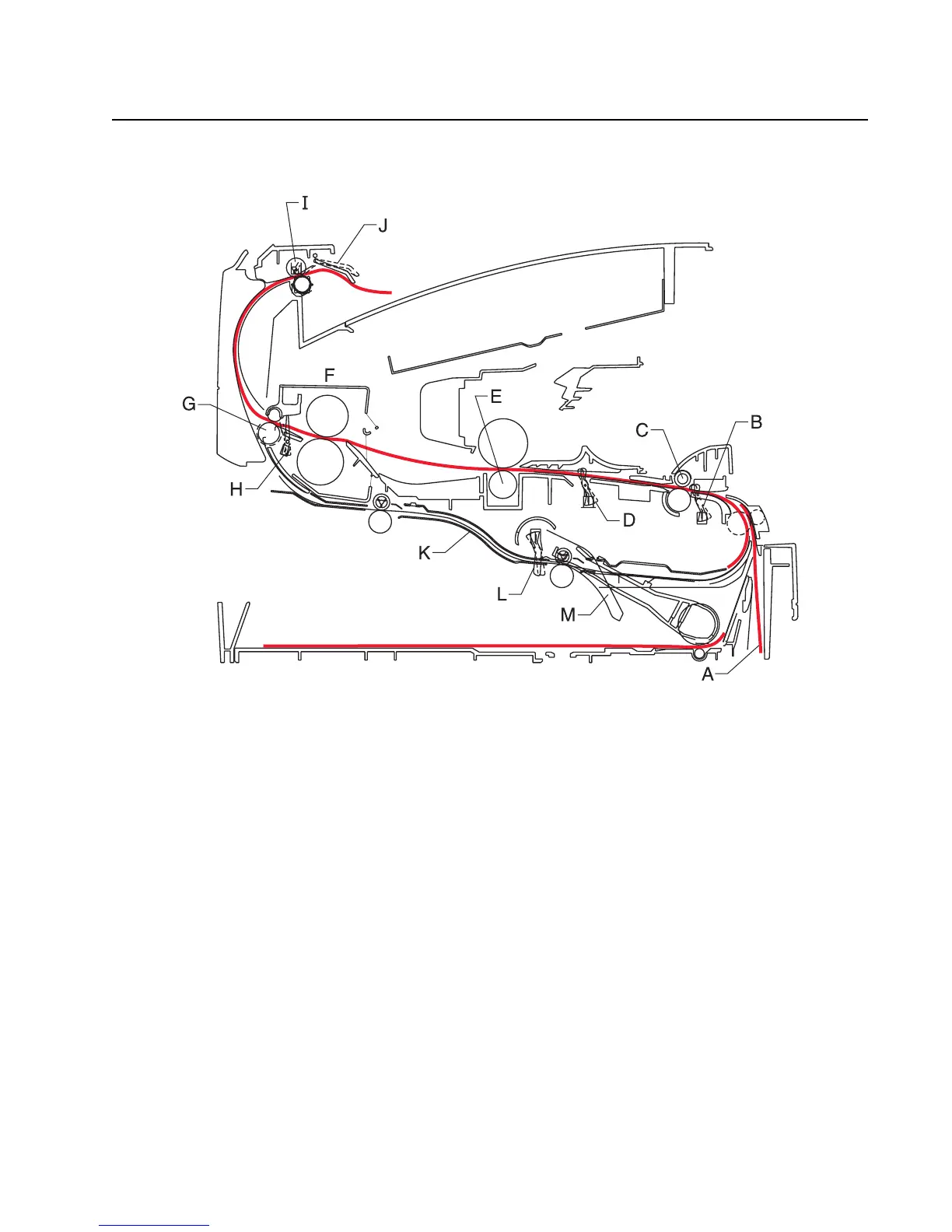

Paper path
A Paper path A-B 117.8
B Manual feed sensor B-C 9.6
C Upper end feed rolls C-D 60.5
D Input sensor D-E 49.0
E Transfer roll E-F 110.7
F Fuser F-G 26.9
G Fuser exit rolls G-H 6.2
H Fuser exit sensor H-I 127.2
I Exit rolls I-J 26.4
J Exit sensor I-K 217.4
K Duplex unit K-L 102.5
L Duplex sensor L-M 16.2
M Auto compensator M-B 178.9
*Measurements are approximate paper lengths (millimeters)
**Sensors are measured at rotation/position which they are tripped
