Repair information 4-37
4512-630
Paper exit guide assembly removal
1.
Remove the rear cover. See “Rear cover removal” on page 3-6.
2. Remove the one screw above the reversing solenoid. See “Top cover removal” on page 3-7.

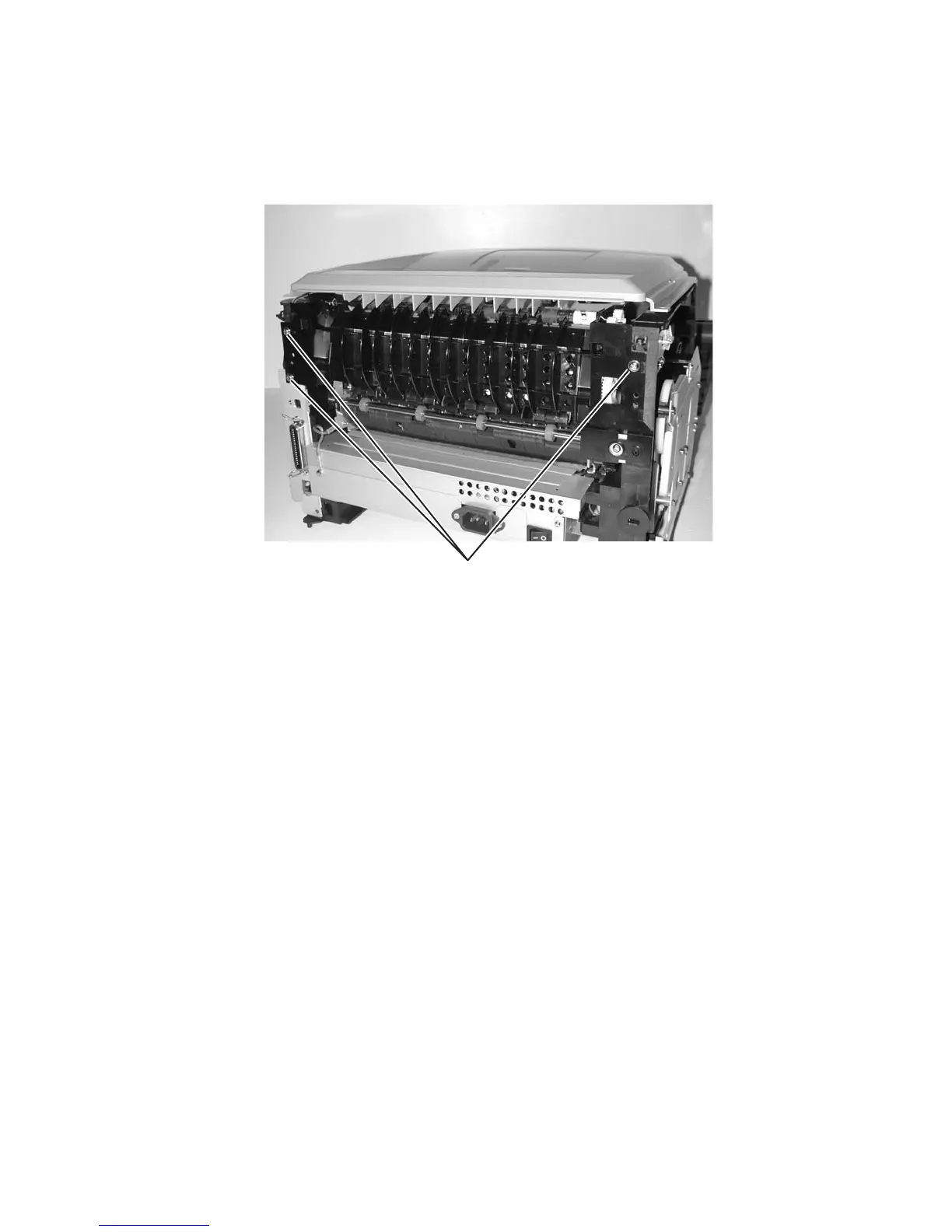

3. Remove the three screws (A).
4. Lift the back of the top cover (right side in photo) to prevent the gears on the assembly from touching other
items while removing, especially the fuser mounting bracket.
5. Remove the paper exit guide assembly.
A
