4-6 Lexmark™ E450dn
4512-630
Rear cover removal
1.
Remove the right side cover. See “Right side cover removal” on page 3-5.
2. Remove the left side cover. See “Left side cover removal” on page 3-4.

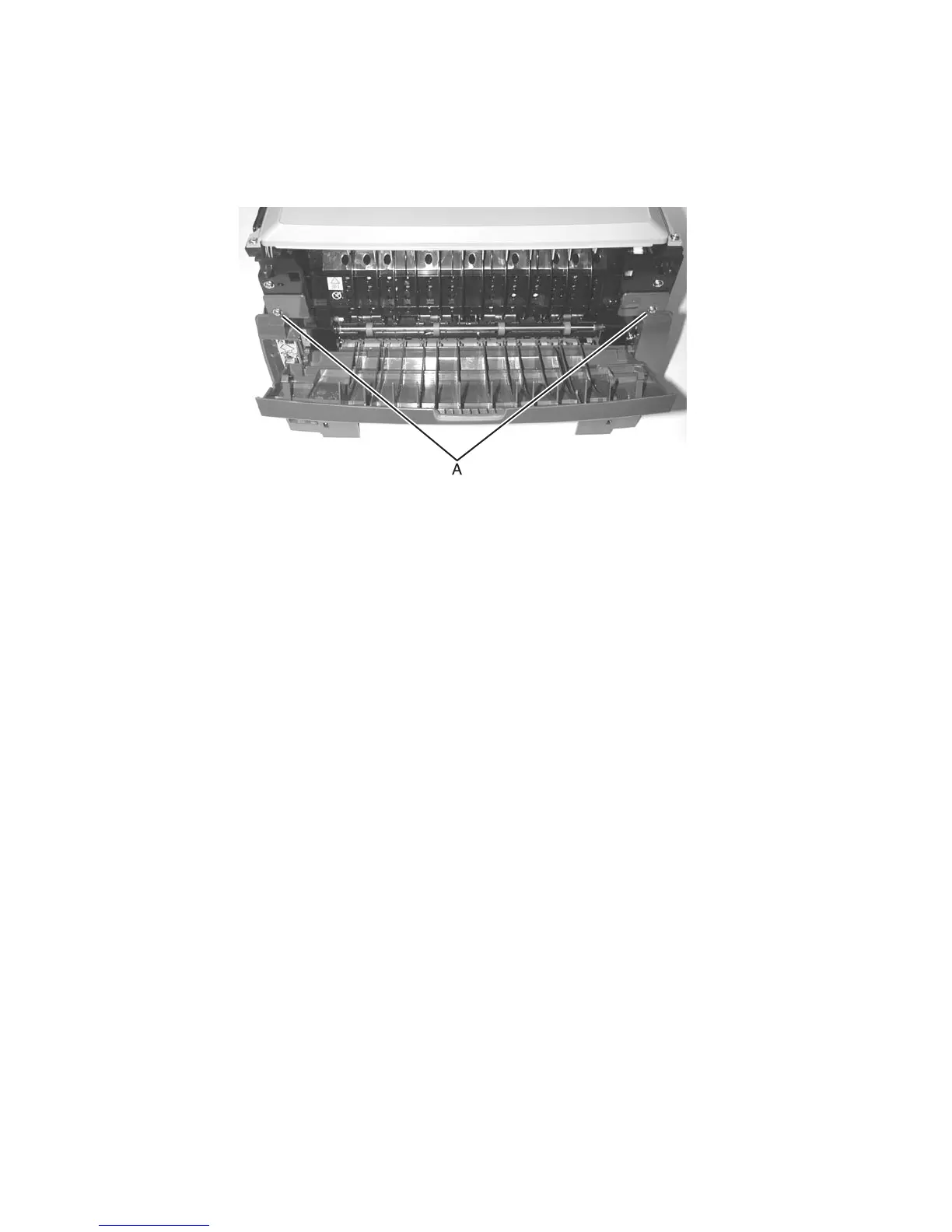

3. Remove the two screws (A).
4. Open the rear cover.
5. Lift the rear cover, unhooking it from the frame at the bottom, and remove.
Note: In re-installation, check to make sure that the fuser ground cable is routed out of the way and is not
pinched or damaged.
