Auto comp removal
1.
Remove the duplex. See “Duplex removal” on page 3-18.
2. Remove the auto comp clutch. See“Auto comp clutch removal” on page 3-10.

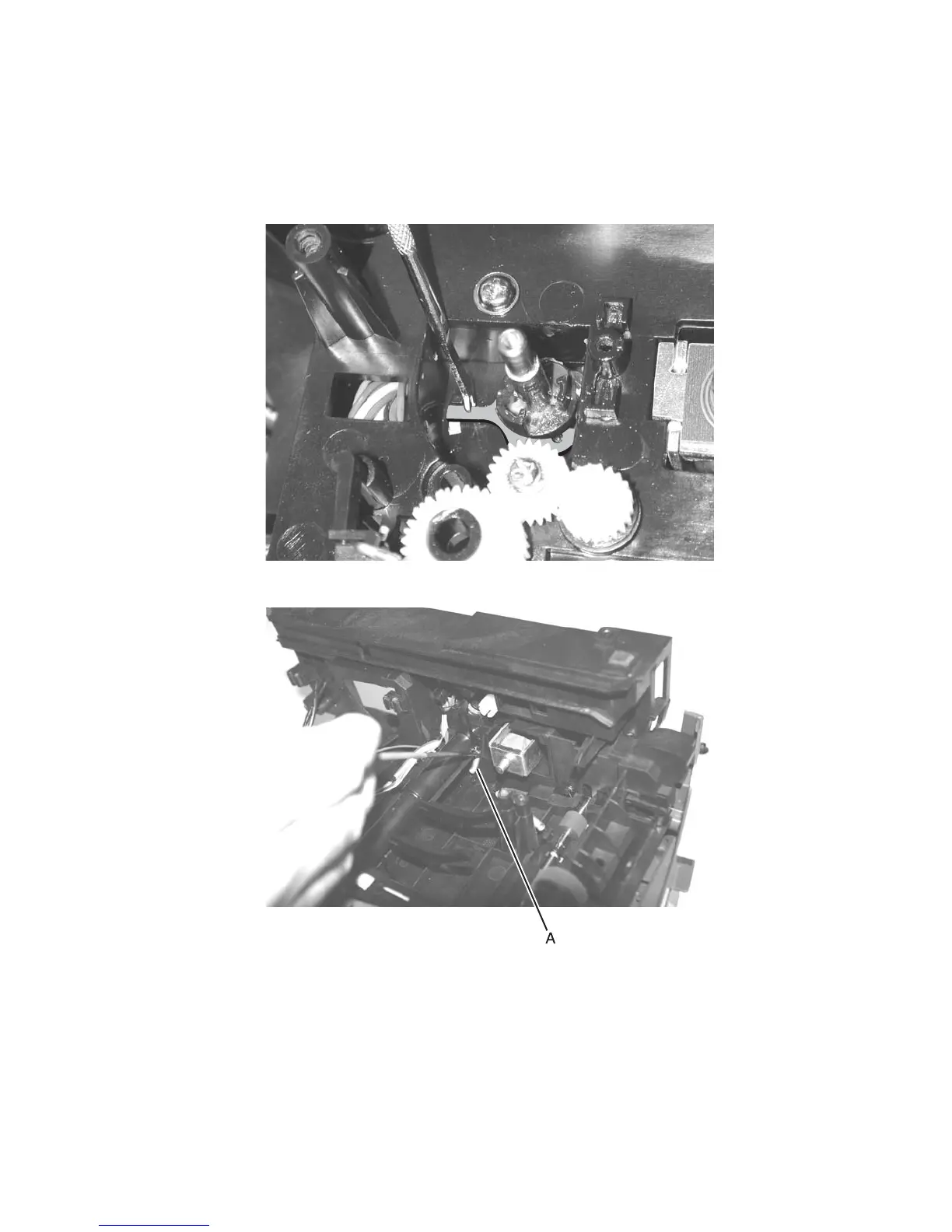

3. Use a spring hook or a small screwdriver to rotate the latch toward the bottom of the printer until it is
pointing downward.
4. Lay the printer on its top. Be sure to protect it from marring.
5. Raise the auto comp, and unhook the counter balance spring (A).
