Repair information 4-11
4512-630
Auto comp drive shaft assembly removal

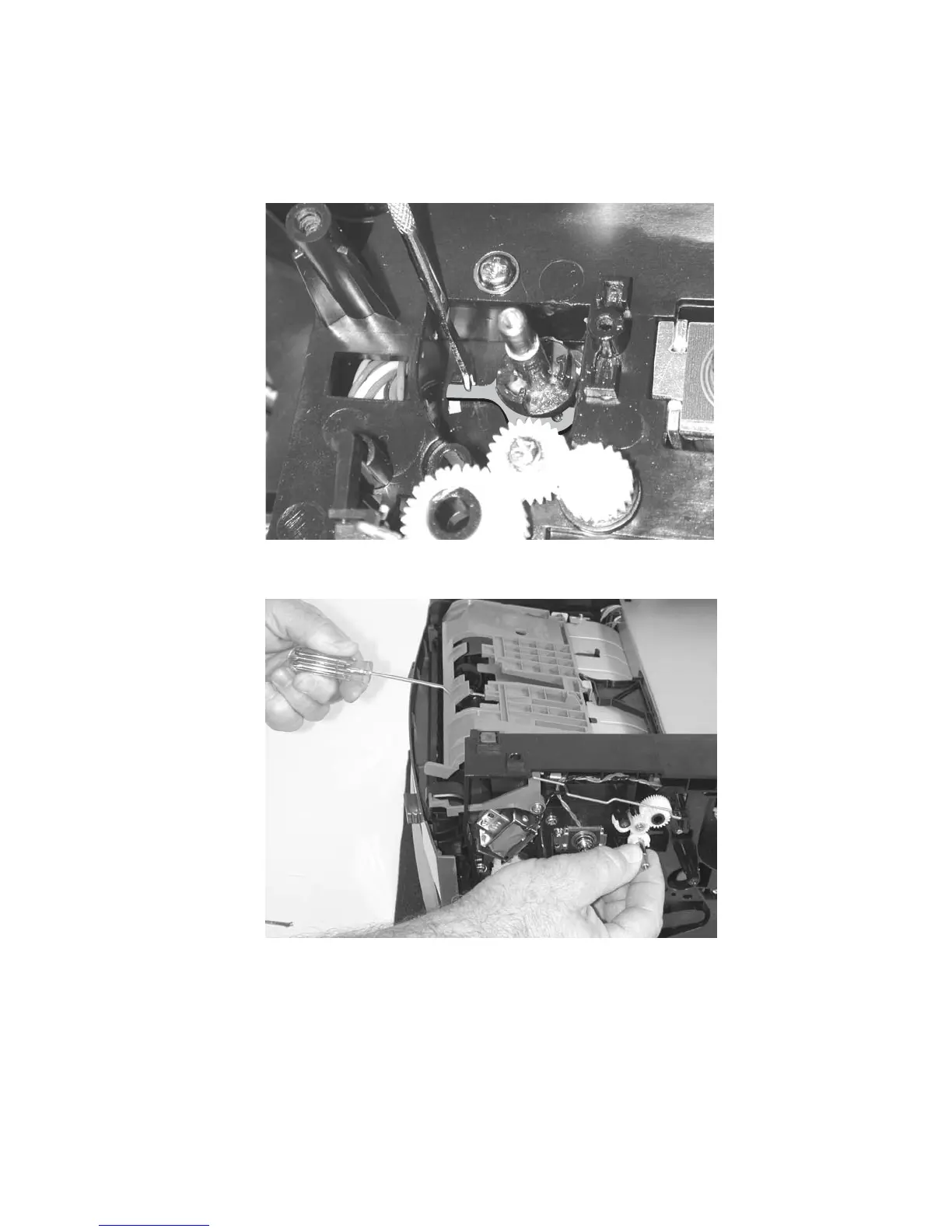

1.
Remove the auto comp clutch. See “Auto comp clutch removal” on page 3-10.
2. Use a spring hook or a small screwdriver to dislodge the arm of the shaft bushing, and rotate the arm
counterclockwise as far as it will go.
3. With the bushing aligned with the frame opening for clearance, unsnap the shaft from the ACM.
4. Remove the auto comp drive shaft assembly.
5. Use a screwdriver to align the ACM with the shaft bearing to help in installation.
