Lexmark E450DN - E 450dn B/W Laser Printer - Front access cover removal

Repair information 4-3
4512-630

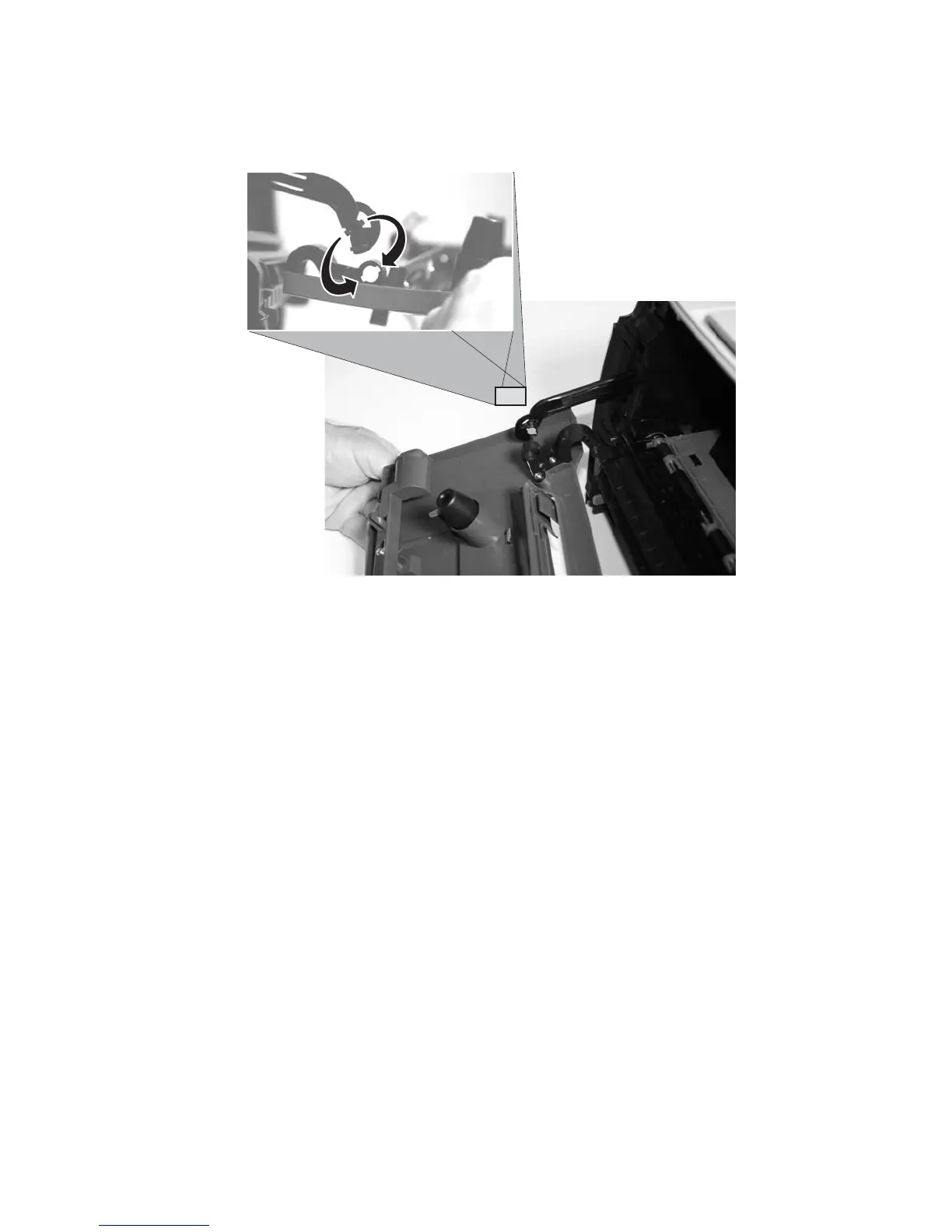

8. Tilt the front cover down, and disconnect it on the left side from the link.
Warning: Make sure that the link is not bent or pulled out farther than normal. Otherwise, the toner cartridge
coupler may become dislodged.
9. Remove the front access cover.
