22 _ Console
Indoor Units
10. Installation
10.3 Connecting the Piping
When you connect the refrigerant pipe, it is easier that you connect the gas pipe first.

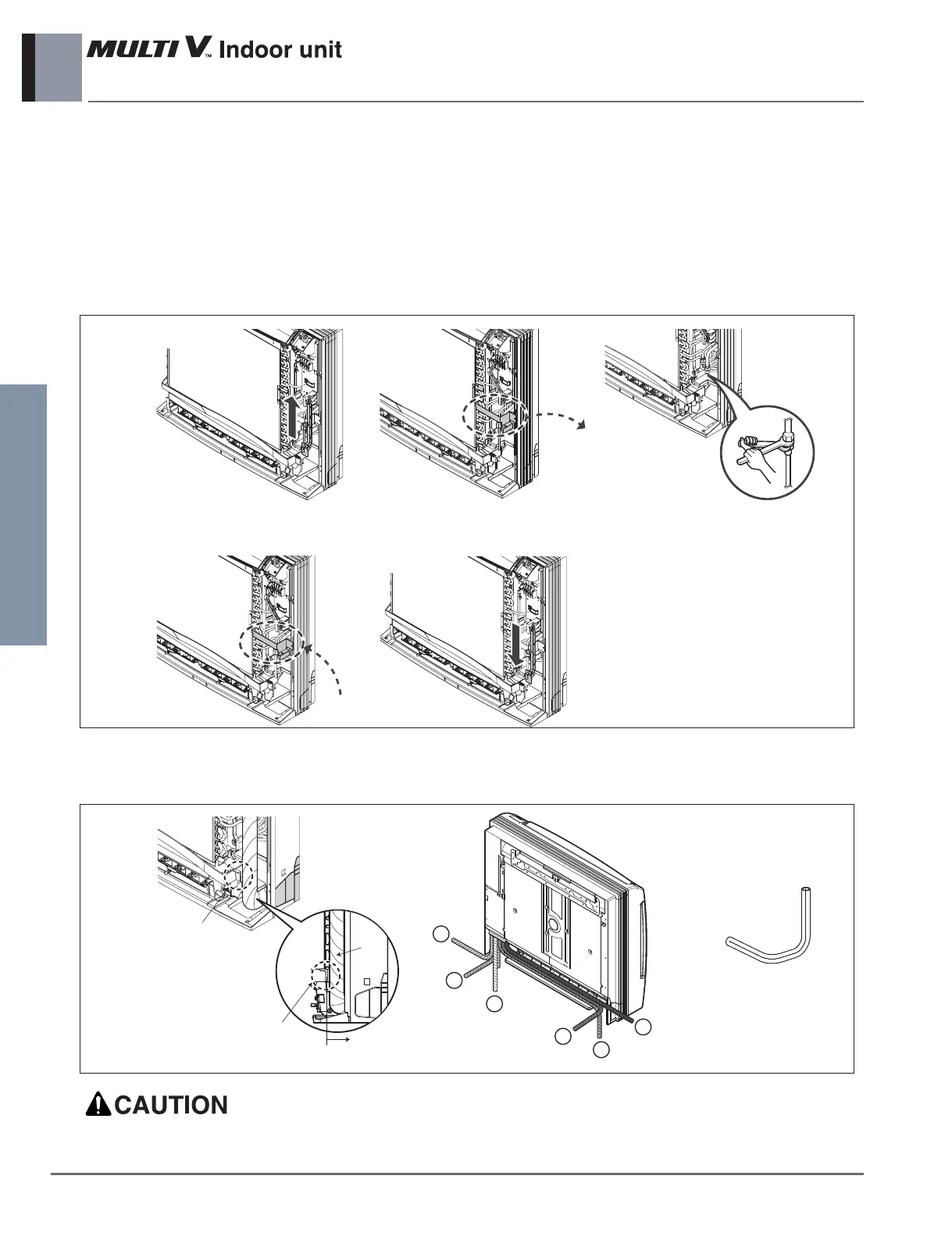

1. Hold up the Sensor Link.
2. Separate the Pipe Bracket (2 screws)
3. Connect the refrigerant pipe. (Refer to next page)
4. Assemble the Pipe Bracket (2 screws)
5. Put down the Sensor Link
6. After connecting, check the pipe arrangement as per illustration.
7. The piping can be arranged in six ways as shown in the illustration below.
uide.
In case of ¬ ~ ≈ , The pipe bending can be used in hand-operated bending machine.
Make a pipe of the shape shown pic 8.
