Console _ 23
Indoor Units

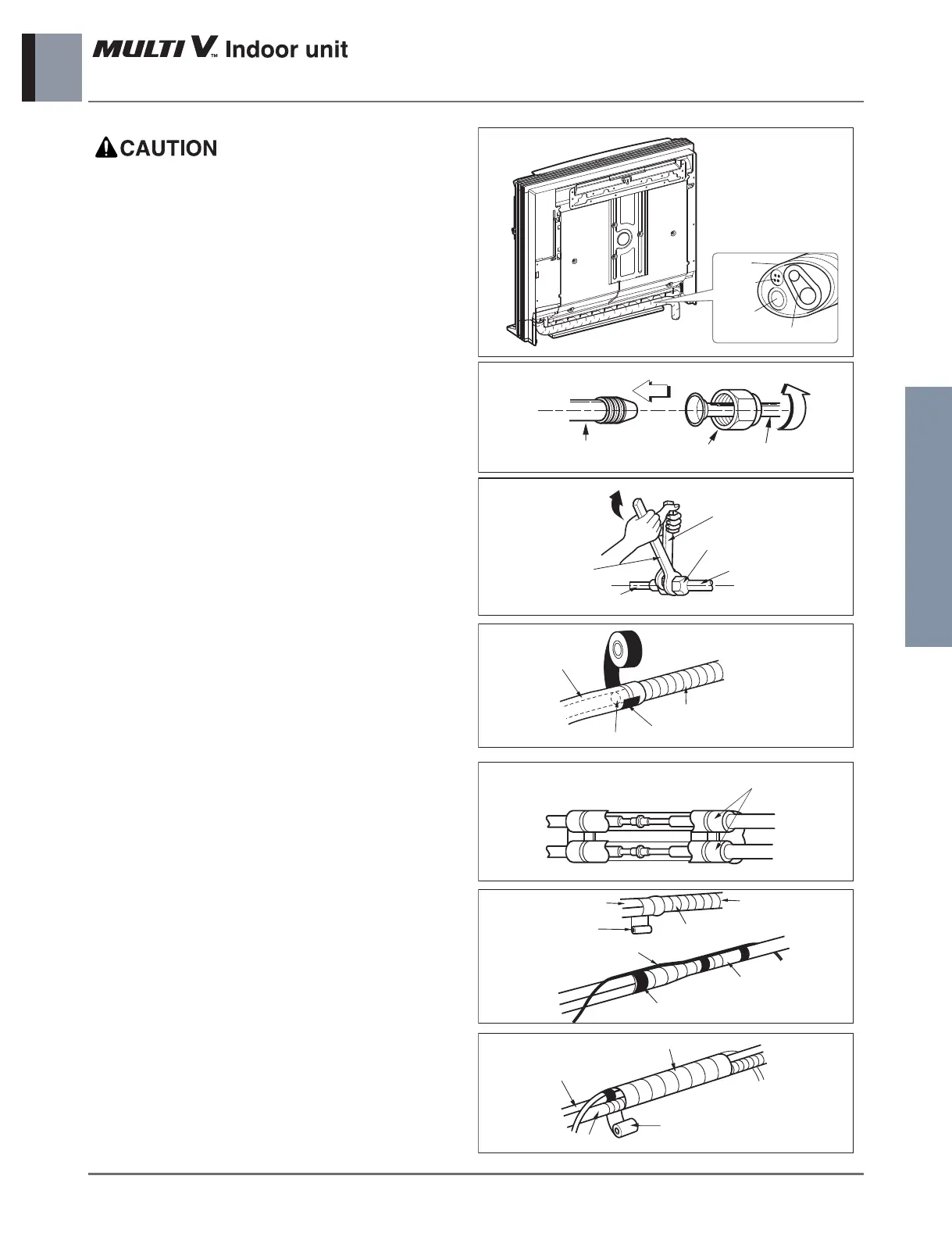

10. Installation
Connecting the installation pipe and
drain hose to the indoor unit.
1. Align the center of the pipes and sufficiently
tighten the flare nut by hand.
2. Tighten the flare nut with a wrench
3. When needed to extend the drain hose of
indoor unit, assembly the drain pipe as shown
on the drawing
Wrap the insulation material around
the connecting portion.
1. Overlap the connection pipe insulation material
and the indoor unit pipe insulation material.
Bind them together with vinyl tape so that there
may be no gap.
2. Wrap the area which accommodates the rear
piping housing section with vinyl tape.
3. Bundle the piping and drain hose together by
wrapping them with vinyl tape sufficient enough
to cover where they fit into the rear piping
housing section.
If the drain hose is routed inside the room insu-
late the hose with an insulation material* so
that dripping from sweating (condensation) will
not damage furniture or floors.
* Foamed polyethylene or equivalent is recom-
mended.
