Vertiv|Liebert® S600 10kVA ~ 20kVA UPS | User Manual 40

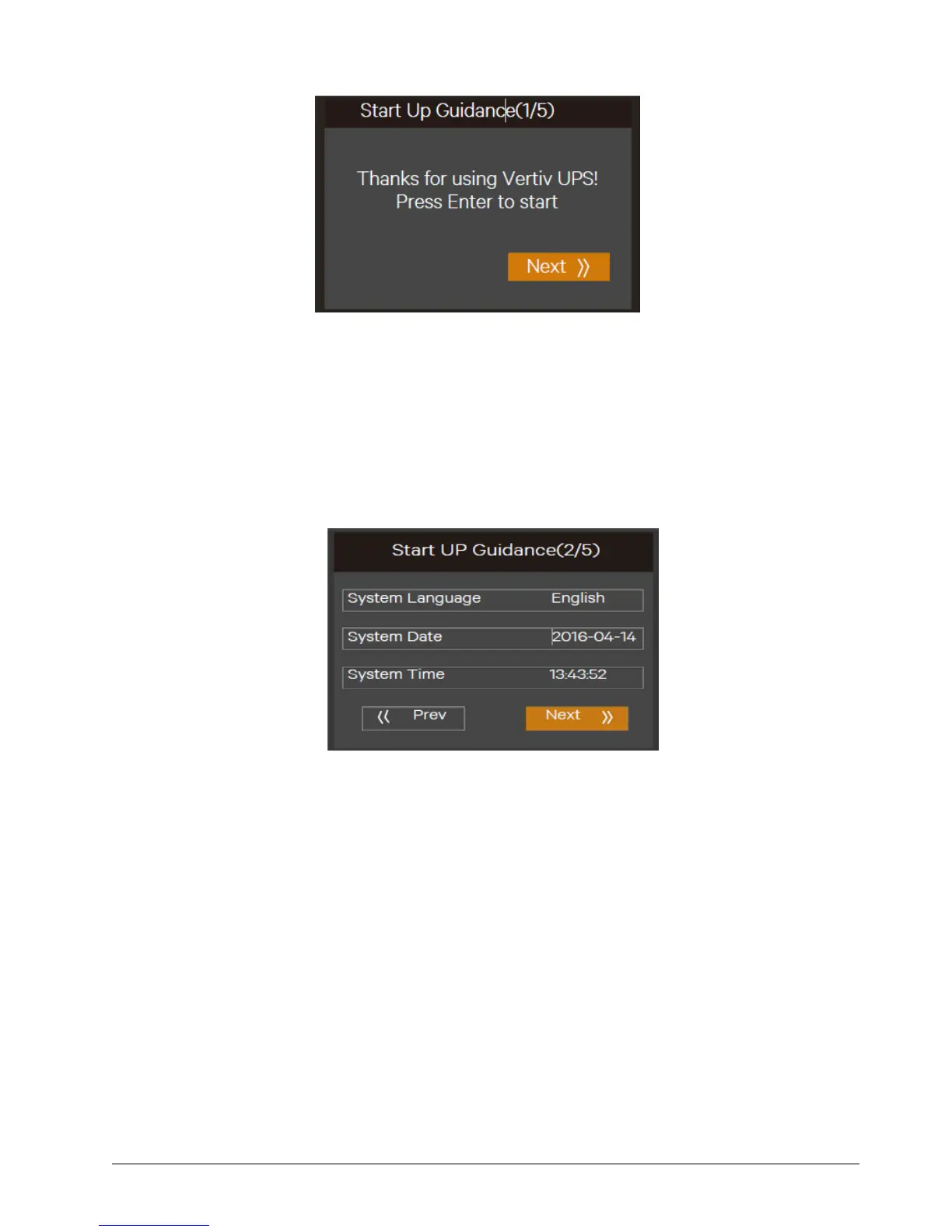

Figure 4-3 Initial start-up guidance (1)
Initial start-up guidance (1)
Welcome page
Click Next to start the guidance.
Language, date and time page
At this page, you can set the language, date and time you need.
Figure 4-4 Initial start-up guidance (2)
Battery parameter page
At this page, you can set the battery cell number and total Ah.
For 10kVA model, the 'Battery series' are 12, 16, and 20 selectable. See left diagram in Figure 4-5.
For 20kVA model, the 'Battery series' are 24, 32, and 40 selectable. See right diagram in Figure 4-5.
