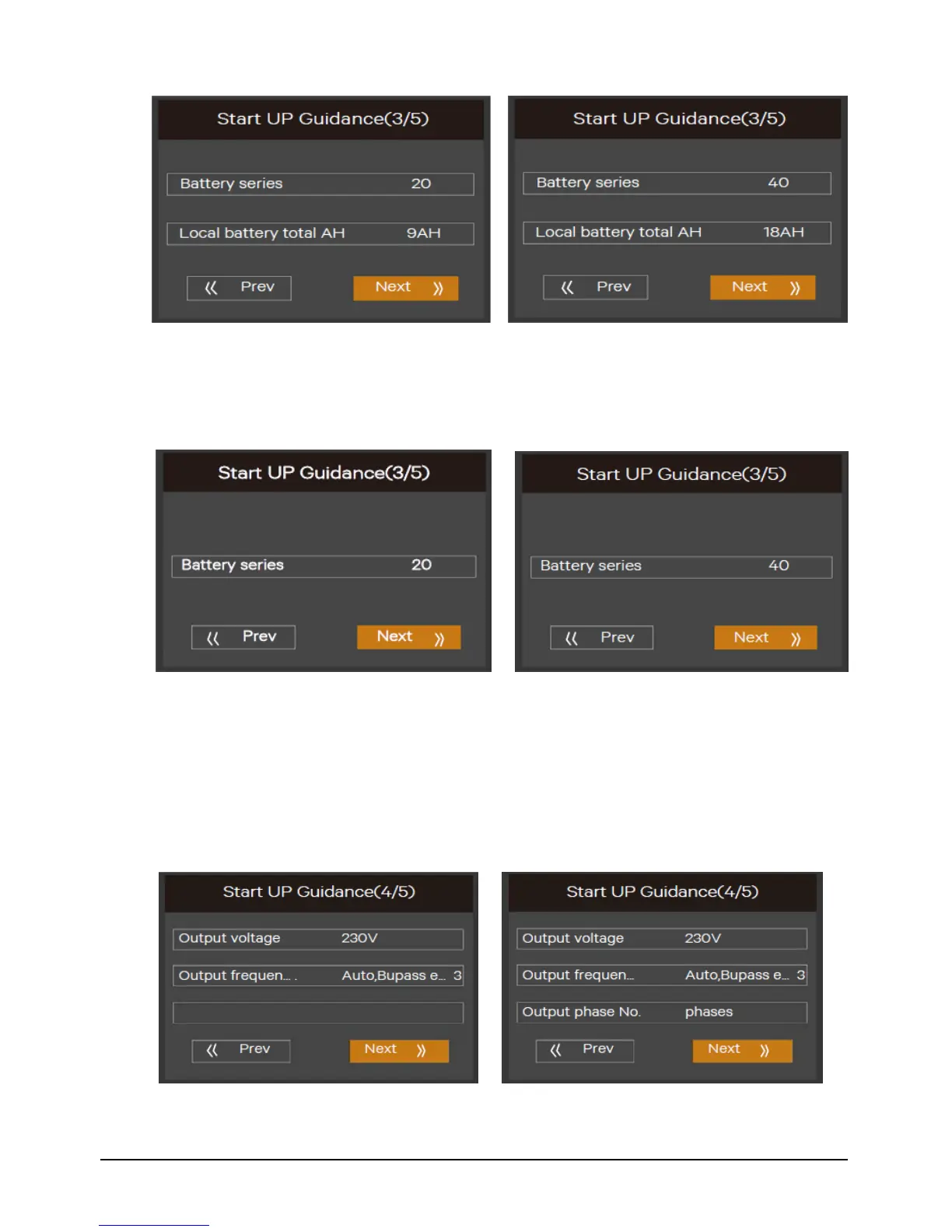

Figure 4-5 Initial start-up guidance (3)
If there is an external battery module, the 'Local battery total Ah' will not appear, see Figure 4-6.
Figure 4-6 Initial start-up guidance (3)
Output page
As shown in Figure 4-8, you can set output voltage, output frequency, and output phase.
For 10kVA model, the 'Output phase No.' cannot be set, because the model only has single phase output. See left
diagram in Figure 4-7.
For 20kVA model, the 'Output phase No.' can be set to 'single' or '3 phases'. See right diagram in Figure 4-7.
Figure 4-7 Initial start-up guidance (4)
