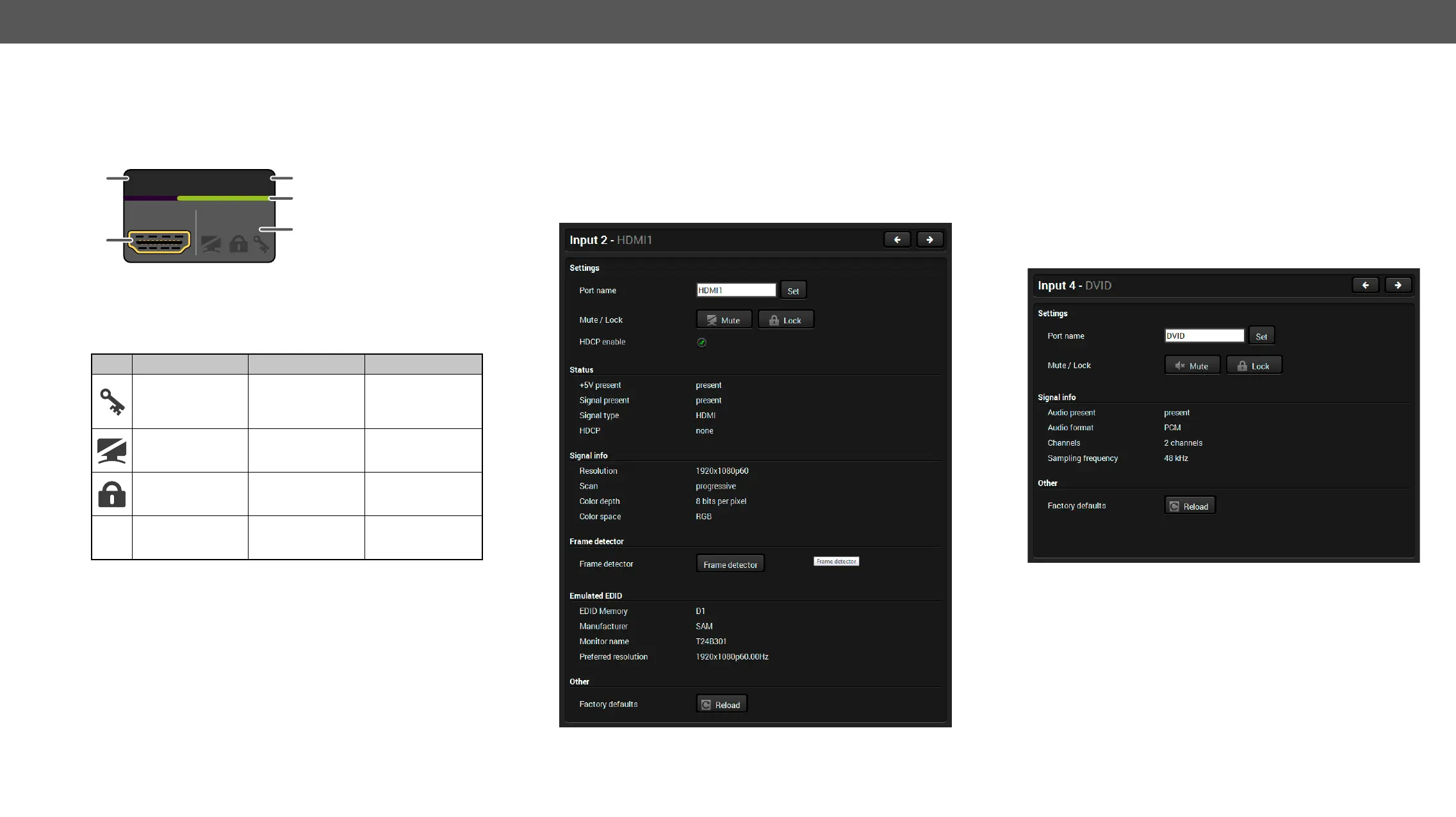

Port Tiles
The colors of the port tiles and the displayed icons represent different
states and information:
1
Port name
2
Port icon
3
Port number
4
Signal present
indicator
green: present
grey: not present
5
State indicators
State Indicators

Icon Icon is grey Icon is black Icon is green
A
Signal is not
encrypted with
HDCP
Signal is
encrypted with
HDCP
-
A
Port is unmuted Port is muted -
A
Port is unlocked Port is locked -
A
Autoselect is
disabled
-
Autoselect is
enabled
LOCALOUT
A
2
5
1
3
O2
4
Port Properties Windows
Clicking on the port tile opens the Port properties window. This section
shows the available settings and status information by port types.
Video Inputs
          
results opening the Port properties window. The most important
information and settings are available from the panel.
Port properties window of the HDMI video input
Available settings:
▪ 
▪ 
▪ 
▪ Frame Detector;
▪ Reloading factory default settings for the selected port.
Digital Audio Inputs
          
results opening the Port properties window. The most important
information and settings are available from the panel.
Port properties window of the DVI-D audio input
Certain parameters of the embedded audio input signal can be set as
follows:
▪ 
▪ 
▪ Reloading factory default settings for the selected port.




