Creating an EDID - Easy EDID Creator
Since above mentioned Advanced EDID Editor needs more complex knowledge about EDID,

Creator it is possible to create custom EDIDs in four simple steps. By clicking on the Create button below
Source panel, Easy EDID Creator is opened in a new window. For more details about EDID Editor please visit
our website (www.lightware.com) and download EDID Editor user's manual.

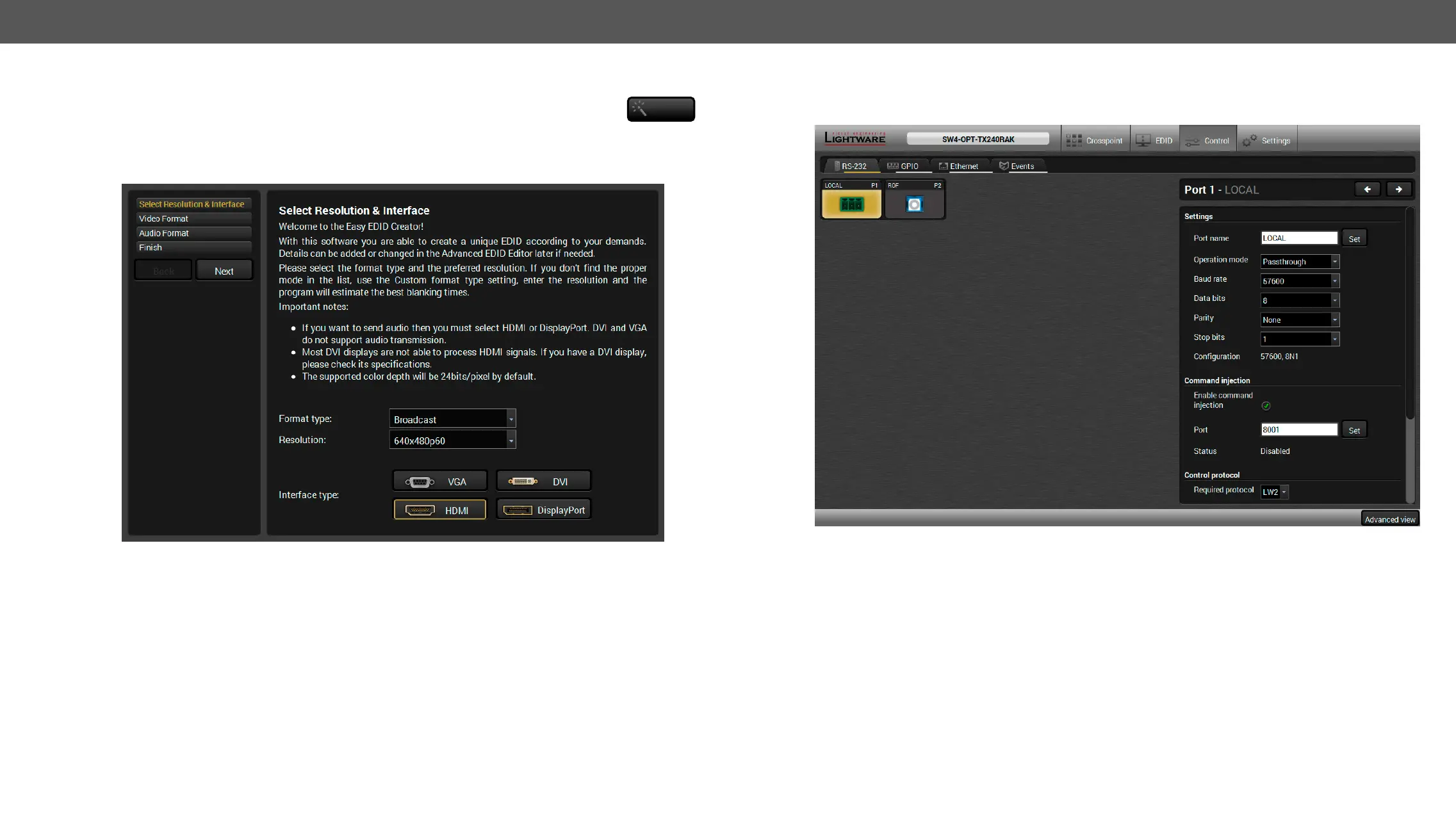

EDID Creator window
A
Create

RS-232
RS-232 tab in Control menu
The following settings and functions are available on the local and optical link RS-232 port:
▪ Operation mode: Control, Pass-through, and Command Injection (for more details about serial interface
modes see the Serial Interface section);
▪ 
▪ Data bits: 8 or 9;
▪ Parity: None, Odd, or Even;
▪ 
▪ Command injection: enable or disable;
▪ Command injection port number;
▪ 
▪ Message sending via serial port;
▪ Reloading the Factory Default Settings.




