Page 32 / 119 Section 5. Installation and operation
5.3.5. Switching

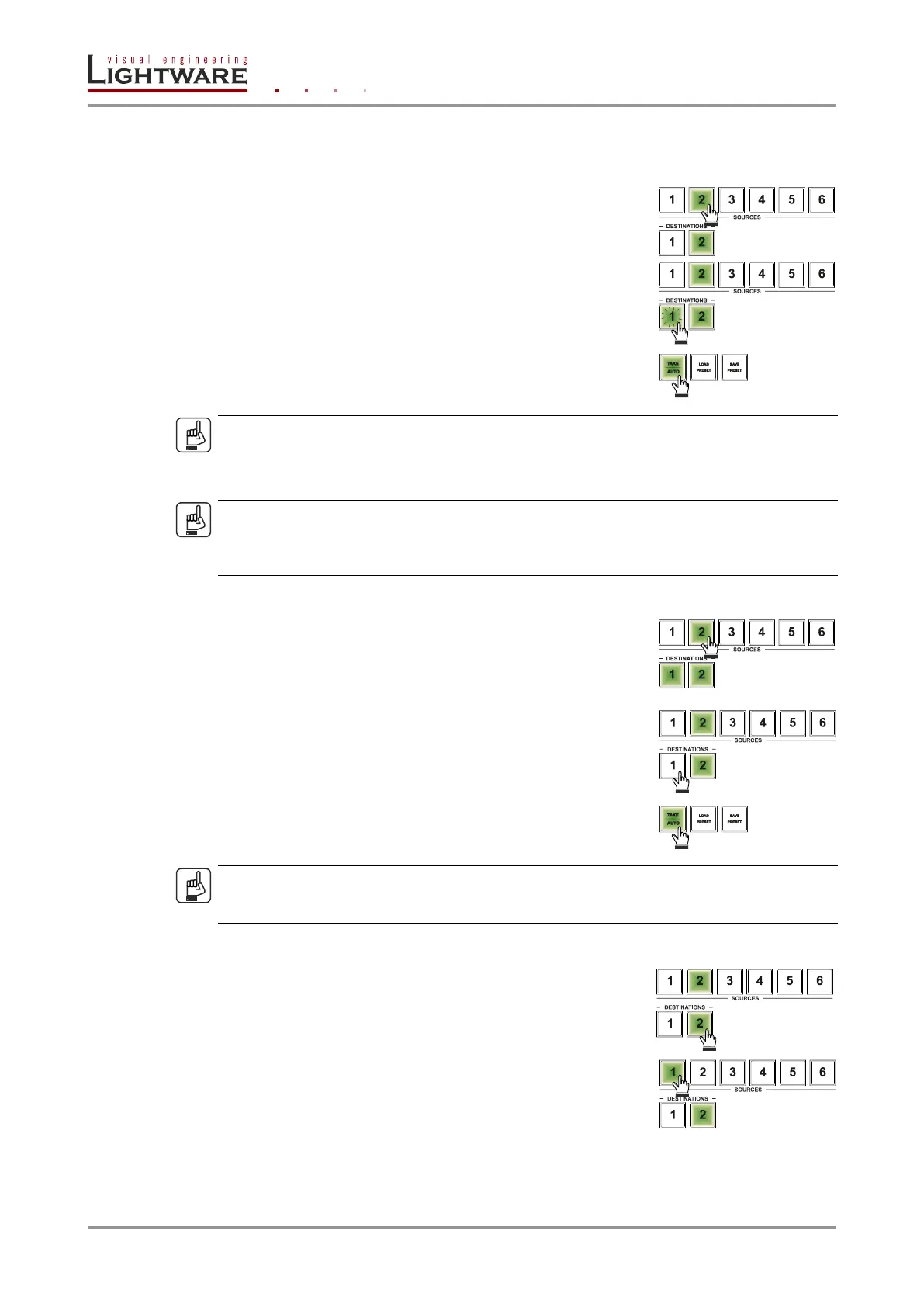

Changing connections in TAKE mode
Step 1. Press and release the desired source button. The
pressed button and all destination buttons which are
currently connected to the source will light up.
Step 2. Press and release the desired destination button or
buttons which have to be connected to the selected
source. The preselected destination button(s) start(s)
blinking.
Step 3. Press and release Take button to execute switching.
Now the selected input is switched to the selected
output or to the multiple outputs.
ATTENTION!
A source button can be pressed twice to preselect all outputs. Outputs which are connected
to the pressed input light up and all other outputs start to blink. Some outputs can be
unselected if needed, then pressing TAKE executes the switching.
ATTENTION!
If the pressed destination is locked then it could not be selected (the destination button is
dark). This is indicated by a short flash of the OUTPUT LOCK when a locked destination is
pressed.
Disconnecting or muting in TAKE mode
Step 1. First, press and release the selected source button. The
pressed source button and all destination buttons
which are currently connected to this source will light
up.
Step 2. Press and release the selected, green lighting
destination button which has to be disconnected from
the selected source. The pressed destination or
multiple destinations will turn dark.
Step 3. Press and release Take button to execute
disconnection. Now the selected output is
disconnected from the selected input.
ATTENTION!
Deselected destinations are disconnected from any source and will be set as ‘muted’, thus,
output devices will display black image, ‘no signal’ message, or automatically will turn off.
Creating a connection in AUTOTAKE mode
Step 1. Press and release the desired destination button. The
pressed destination button and the actually connected
source button light up green. If no source is connected
(the output is muted) no source button will light up.
Step 2. Press and release the desired source button. The
switch action will be executed immediately. Switching
between sources to the selected destination can be
done directly.
Disconnecting or muting in AUTOTAKE mode
To prevent accidental muting this action is inhibited (disabled) in AUTOTAKE mode.
Pressing a source button twice would cause accidental disconnecting.
