6.9.2. Network tab
Network-related settings are available on the tab.

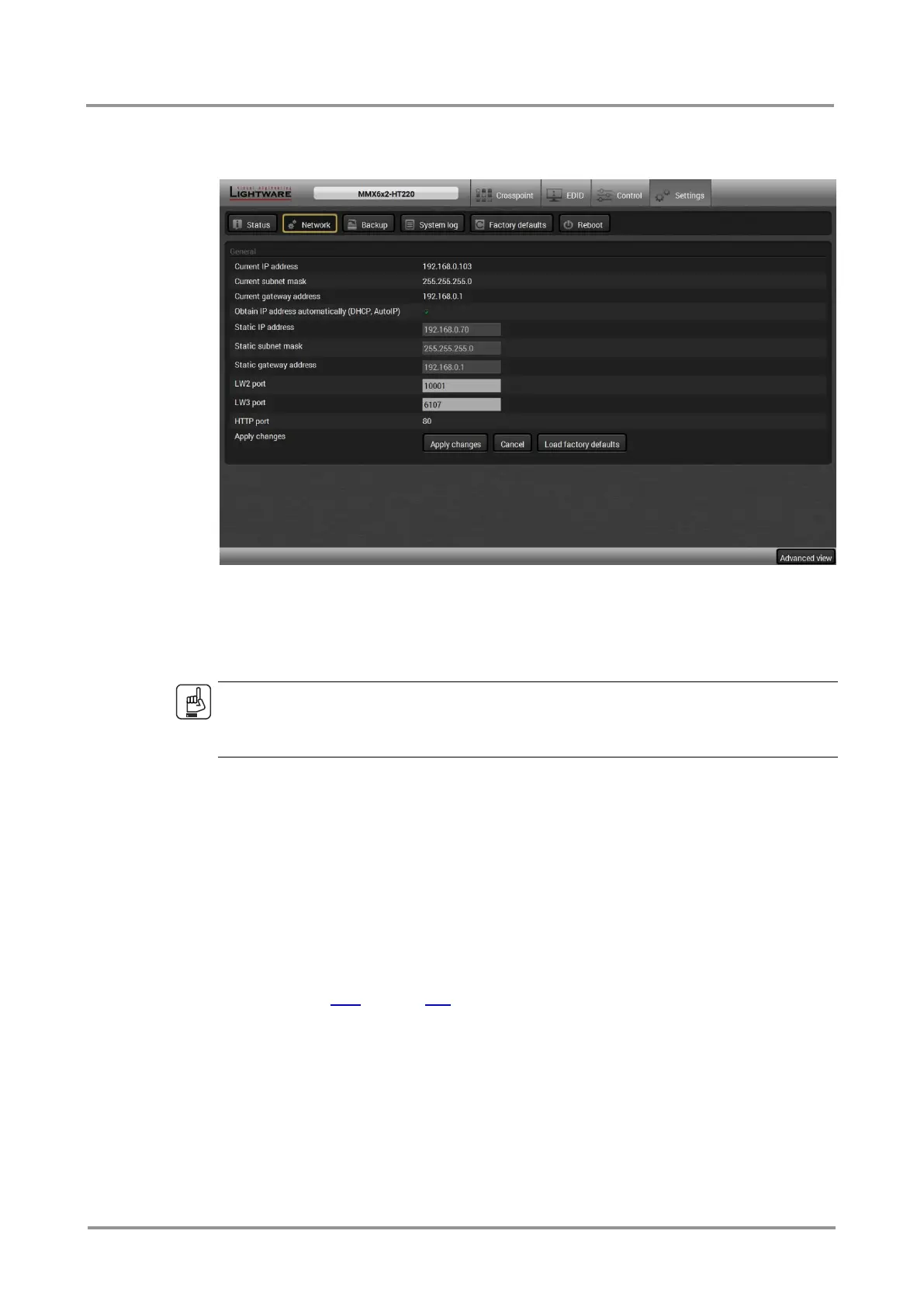

Figure 6-17. Network tab
When dynamic IP address is used, the DHCP option is ticked; the IP settings of the matrix
is shown in the first three lines. When static IP address is used, the DHCP option shall be
unticked and below three lines can be used to define the IP settings. The device is able to
communicate with LW2 and LW3 protocols, the ports can be set in the displayed lines.
ATTENTION!
Connecting to the matrix via Ethernet and using LW2 port no. (default is 10001) the device
will accept LW2 protocol commands. Using LW3 port no. (default is 6107) the device will
accept LW3 protocol commands.
6.9.3. Function buttons
System log button
Logged events can be collected and saved into a file which is useful when troubleshooting
or in another special case for analyzing. Data collecting may take some minutes. You will
be prompted about log generating before starting. When the collecting is done, the Save
as window appears; select the desired location and press the Save button.
Factory defaults button
Factory default values can be restored by pressing the button; you will be asked to confirm.
The connection will be terminated and the device is rebooted. Factory default values are
listed in section 10.6 on page 116.
Reboot button
The device can be restarted; the connection will be terminated
