Lightware MMX6x2-HT200 User Manual

Page 14 / 119 Section 2. Controls and connections

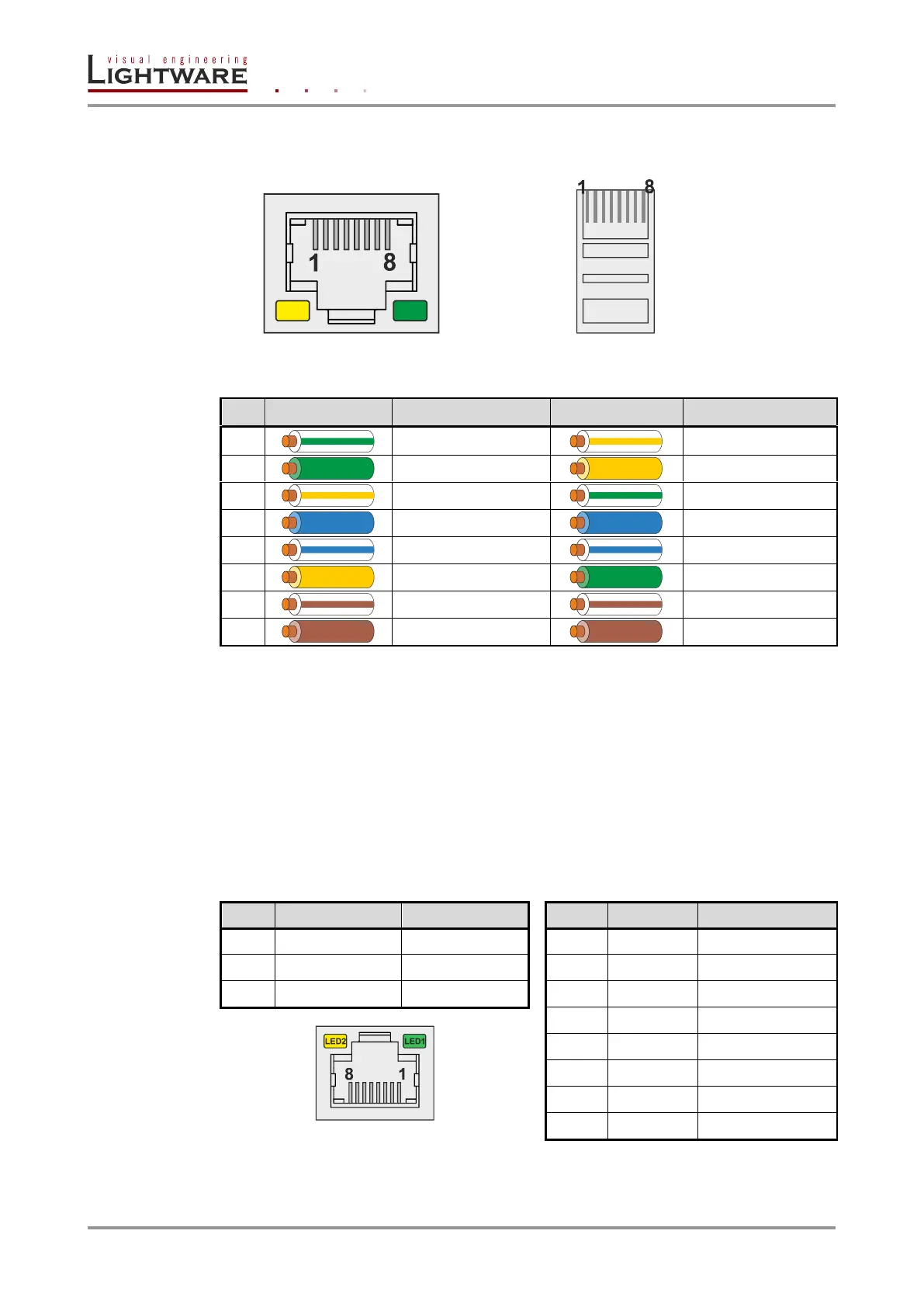

2.3.4. TPS input/output ports
The matrix provides standard RJ45 connectors for TPS input and output ports.
RJ45 receptacle RJ45 plug
The recommended termination is based on TIA/EIA T 568 A or TIA/EIA T 568 B standards.
Pin
TIA/EIA T568 A
color and name
TIA/EIA T568 B
color and name
1
white/green stripe
white/orange stripe
2
green solid
orange solid
3
white/orange stripe
white/green stripe
4
blue solid
blue solid
5
white/blue stripe
white/blue stripe
6
orange solid
green solid
7
white/brown stripe
white/brown stripe
8
brown solid
brown solid
When a standard Ethernet device is connected to the TPS connector for some reason, the
port is switched to Ethernet fallback mode automatically.
2.3.5. LAN and TPS Ethernet port
The matrix contains two RJ-45 connectors for Ethernet/LAN connection: one for local
control functions and one for the TPS lines. The two interfaces are connected (default) but
can be separated. The connector with “LAN” display is for local controlling functions – the
matrix can be configured and controlled via local Ethernet via this port. The connector with
“TPS Ethernet” display is to supply the Ethernet to the TPS ports.
The Ethernet ports can be connected to a LAN hub, switch or router by a CATx cable.
However both cable types (straight or cross) are supported and handled by the device,
below pin assignment is recommended.
LED1 (green)
LED2 (yellow)
Pin no.
Name
Wire color
OFF
10 Mbit/s
not linked
1
TX +
Green stripe
Blink
-
activity
2
TX -
Green
ON
100 Mbit/s
no activity
3
RX +
Orange stripe
4
Not used
Blue
5
Not used
Blue stripe
6
Rx -
Orange
7
Not used
Brown stripe
8
Not used
Brown
Figure 2-3. RJ45 connector and pin assignments for Ethernet
