MMX6x2-HT
User’s Manual
Section 6. Software control – Using Lightware Device Controller Page 47 / 119

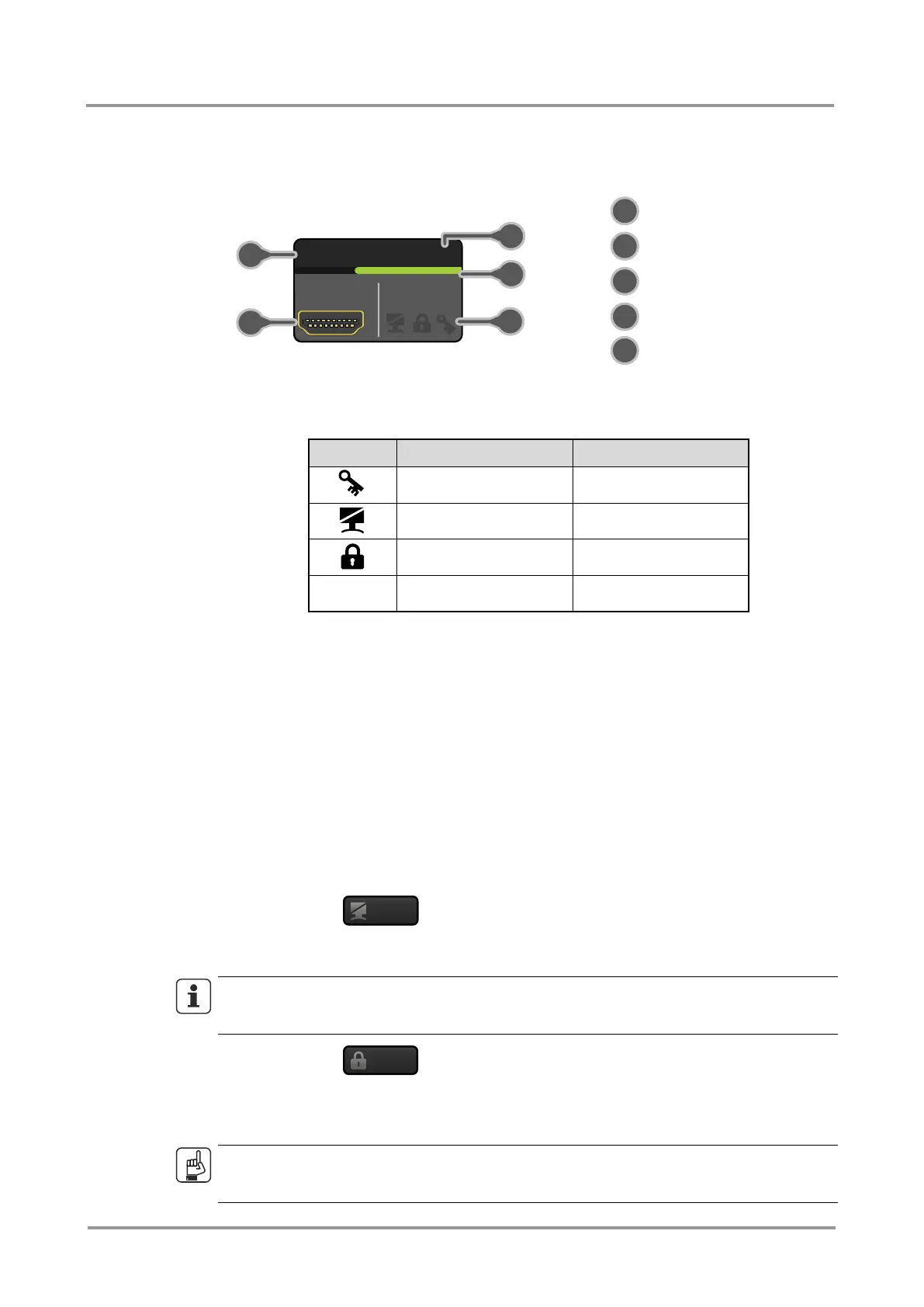

Port tiles
The colors of the port tiles and the displayed icons represent different states and
information:
Signal present (green),
not present (grey)
State indicators
Following icons display different states of the port/signal:
Signal is not encrypted
with HDCP
Signal is encrypted
with HDCP
Table 6-2. State indicators on video ports
* Displayed only on output ports; when Autoselect is enabled the icon is displayed in green.
6.4. Port properties and settings
Click on a port to display its properties; Signal status information and the most important
parameters are displayed. Special functions (e.g. frame detector, test pattern generator)
are also available on the panel. The look and the content are port-dependent.
6.4.1. Port name
The name of a port can be changed by typing the new name and clicking the Set button.
The following characters are allowed when naming:
Letters (A-Z) and (a-z), hyphen (-), underscore (_), numbers (0-9) and dot (.).
6.4.2. Mute/Unmute
The incoming/outgoing signal can be muted on the input and output ports. If the output is
muted, button text is “Muted”. When the port is muted, no signal is present on the output.
INFO
The mute/unmute setting can be set on the output ports independently from each other,
e.g. if HDMIOUT1 is muted, TPSOUT1 may be unmuted.
6.4.3. Lock/Unlock
The output ports can be locked by clicking on the button Unlocked. If the output is locked,
button text is “Locked”. If the port is locked, its mute state cannot be changed either by the
button or by loading a preset.
ATTENTION!
Since the output ports are mirrored, the lock/unlock setting is valid on both outputs; e.g. if
HDMIOUT1 is locked, TPSOUT1 is also locked.
