5.3.8. Output lock
Locking a destination means, that no input change or muting can be executed on that
particular destination. This feature prevents an accidental switching to the locked
destination in the case of an important signal. Destinations can be independently locked or
unlocked. Locking a destination does not affect other destinations.

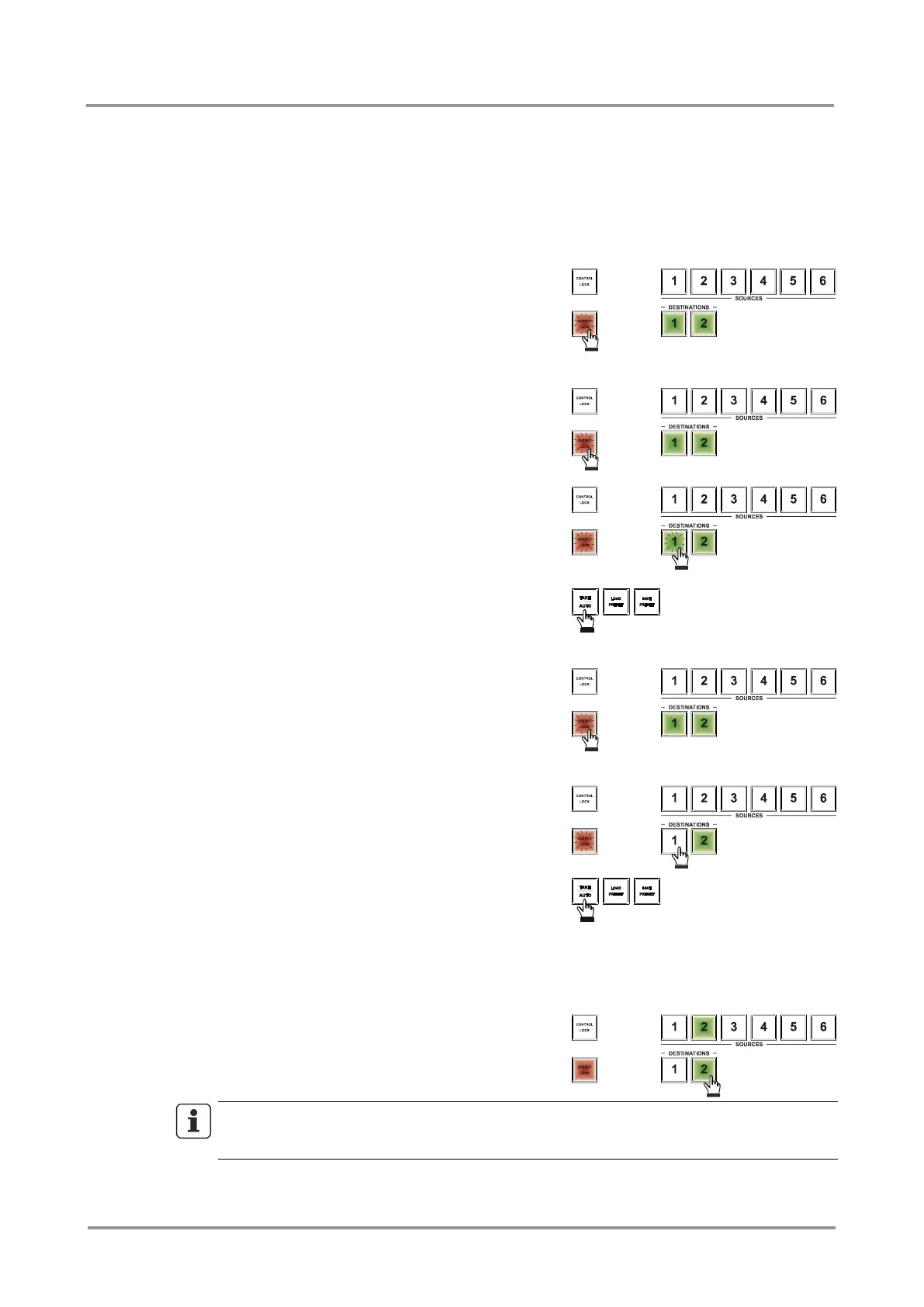

View locked outputs in TAKE mode
Press and release the Output lock button; it starts
to blink. All the buttons of any locked destinations
light up and remain illuminated for three seconds.
Lock an output in TAKE mode
Step 1. Press and release the Output lock button;
it starts to blink and all the buttons of any
locked destinations light up (view state). If
no button is pressed for three seconds the
router returns to idle state.
Step 2. Press and release a destination button; it
starts to blink, to indicate that it is
preselected for output locking. (More
destinations can be selected
sequentially.)
Step 3. Press and release Take button. The
selected destinations are now locked.
Unlock an output in TAKE mode
Step 1. Press and release the Output lock button;
it starts to blink and all the locked
destination’s buttons illuminate green
(view state). If no button is pressed for
three seconds, the router returns to idle
state.
Step 2. Press and release a destination button of
a locked output. It will turn to dark. (More
destinations can be selected
sequentially.)
Step 3. Press and release the Take button. The
deselected destinations are now
unlocked.
View locked output state in AUTOTAKE mode
In Autotake mode, a destination is selected all the time. Therefore, the currently selected
output and input buttons are illuminated.
Press and release a destination button. If the
Output Lock button illuminates, the current output
is locked. (If a source is connected to the
destination, the source button is also illuminated.)
INFO
Viewing all locked outputs is not possible in AUTOTAKE mode, as pressing the Output
Lock button instantly locks or unlocks the current output.
