1.4. Model comparison
Model
HDMI
input
TPS
input
Analog
audio
input
HDMI
output
TPS
output
Analog
audio
output
MMX6x2-HT200
4x
2x
4x
2x
-
2x
MMX6x2-HT210
4x
2x
4x
2x
1x
2x
MMX6x2-HT220
4x
2x
4x
2x
2x
2x
Table 1-1. I/O connectors comparison
1.5. Typical application

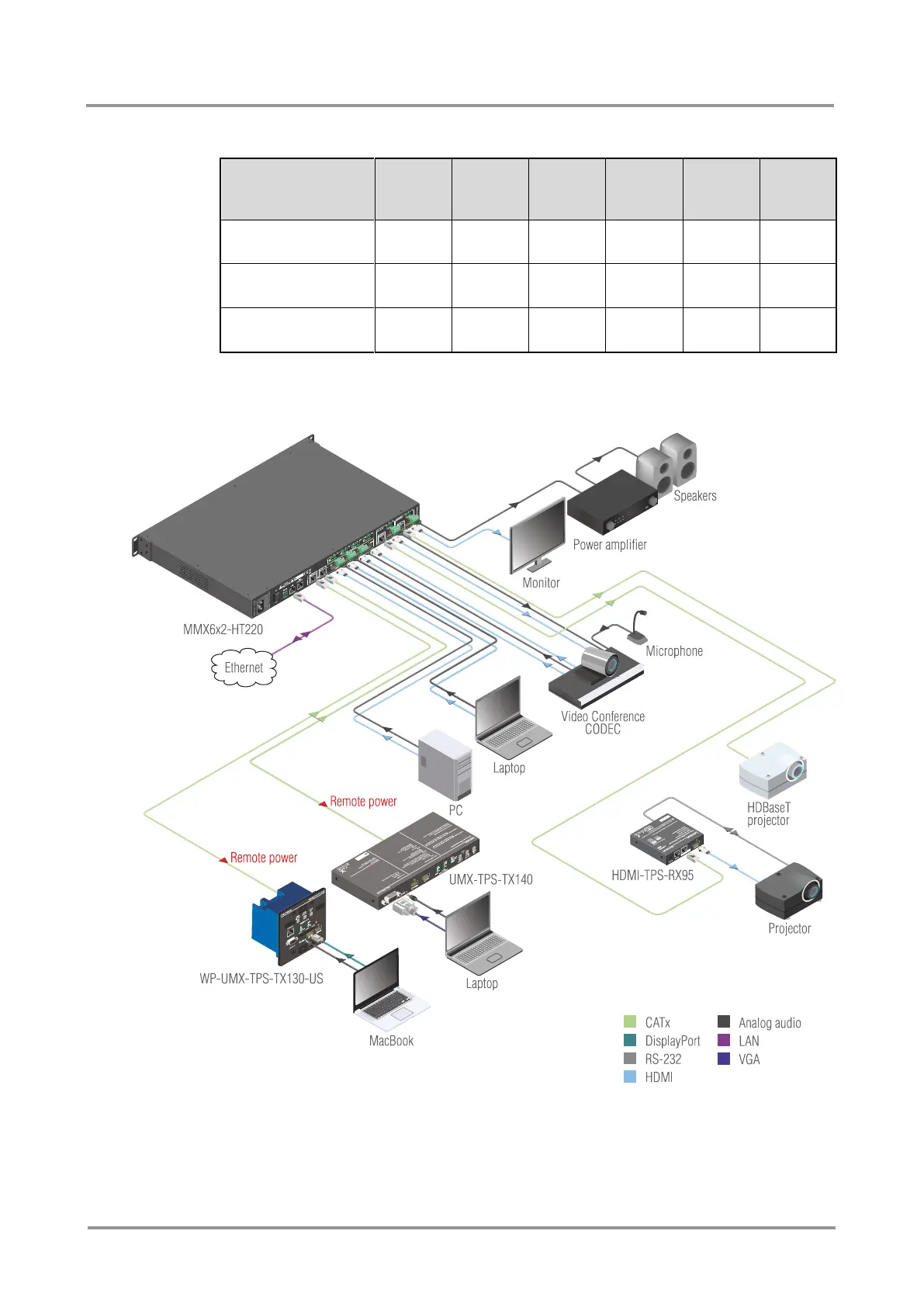

Figure 1-1. Typical application of MMX6x2-HT220
