Lilin DVR308 - Appendix C. RS485 Input and Output Pin Assignment; Appendix D. Hard Disk Drive Support List

DVR User Manual
52

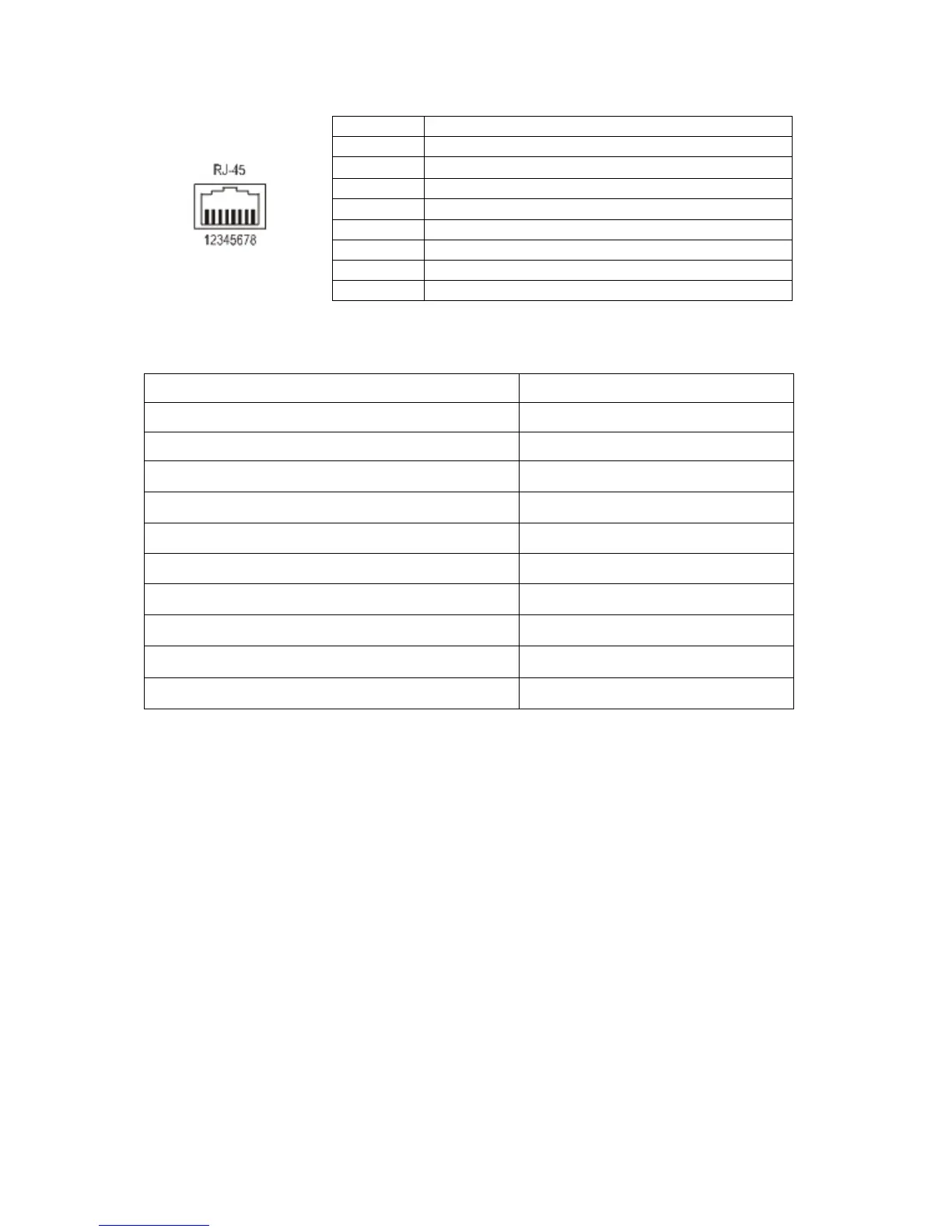

Appendix C. RS485 Input and Output Pin Assignment
Appendix D. Hard Disk Drive Support List
Model HDD Size
WD5000AVDS 500GB
WD5000AVVS 500GB
WD10EVDS 1TB
WD3200AVVS 320GB
WD2500AVVS 250GB
WD20EVDS 2TB
ST3500418AS 500GB
WD10EURS-630AB1 1TB
WD10EURS-630AB1 1.5TB
WD20EURS-63S48Y0 2TB
Terminal
Name
1 --
2 --
3 --
4 --
5 RS-485 – Out Link Keyboard
6 RS-485 + Out Link Keyboard
7 GND
8 DC +12V input
