CHAPTER 1. SYSTEM OVERVIEWS
Chapter 1-1. Front Panel
[DVR304]

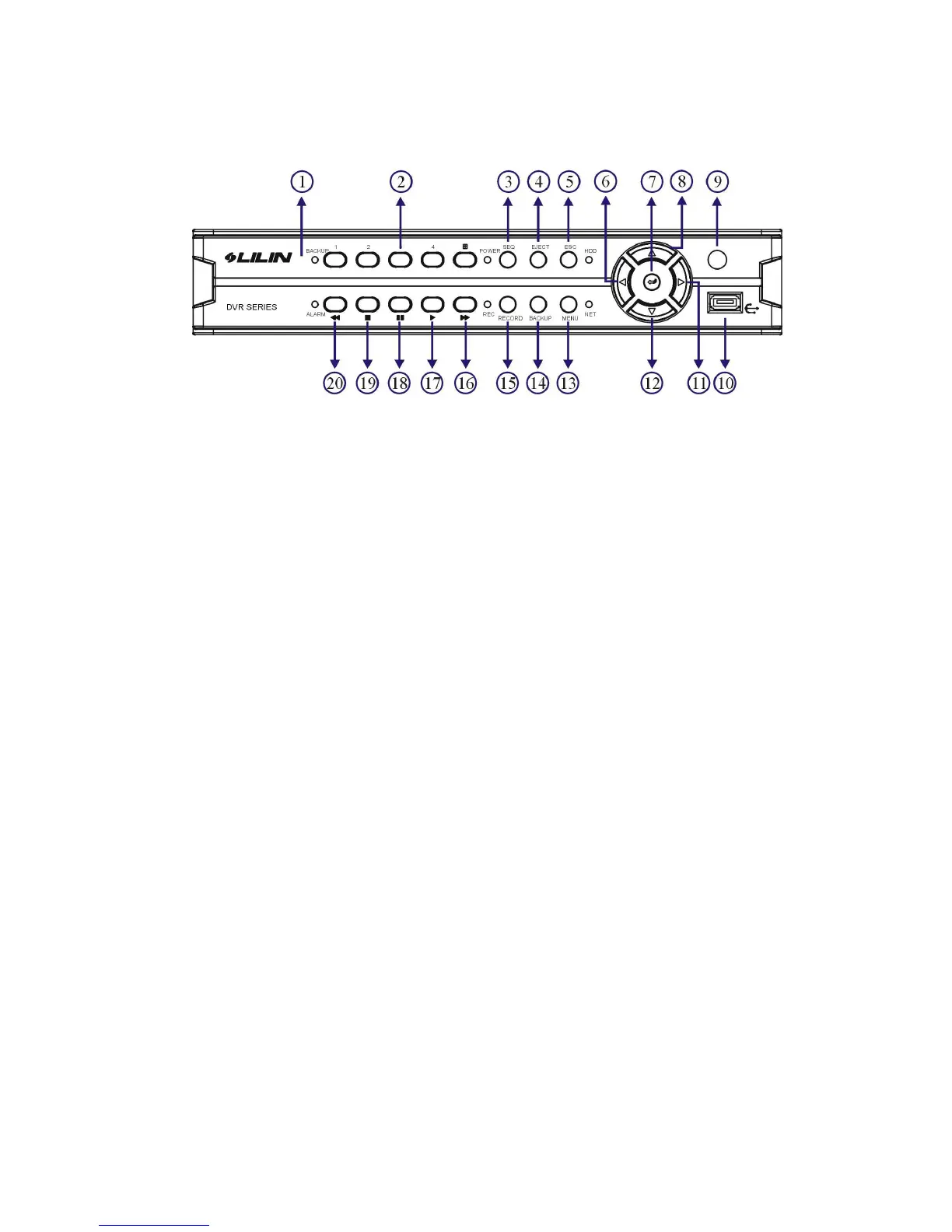

1. LED status panel 11. Right button
Please see system LED status panel. a. Move cursor right in menu.
2. Split-display/camera buttons b. Pan right at PTZ control mode.
a. 4 split-display c. Increase a value.
b. Camera selection mode
12. Down button
3. SEQ button
a. Move cursor down at menu mode.
4. EJECT button b. Tilt down at PTZ control mode.
5. ESC
13. Menu button
6. Left button 14. Backup button
a. Move cursor left at menu setup. 15. REC button
b. Pan left at PTZ control mode. Start recording operation or stop the
c. Decrease a value. recording task.
7. Enter button 16. Fast forward button
a. Enter operation in menu setup. a. Video fast forward
b. Instant PTZ camera selection at live mode.
b. Next event page
c. Camera active mode
17. Play button
8. Up button a. Invoke playback selection menu.
a. Move cursor up in menu. b. Replay after FF, FR, Pause, stepping
b. Tilt up at PTZ control mode. when playing video.
9. Remote control IR receiver
18. Pause button
10. USB 2.0 connector 19. Stop video playback button
a. USB flash disk Live: freeze video, playback: pause video
b. USB DVD/RW 20. Fast reverse button
a. Video fast reverse
b. Previous event page
