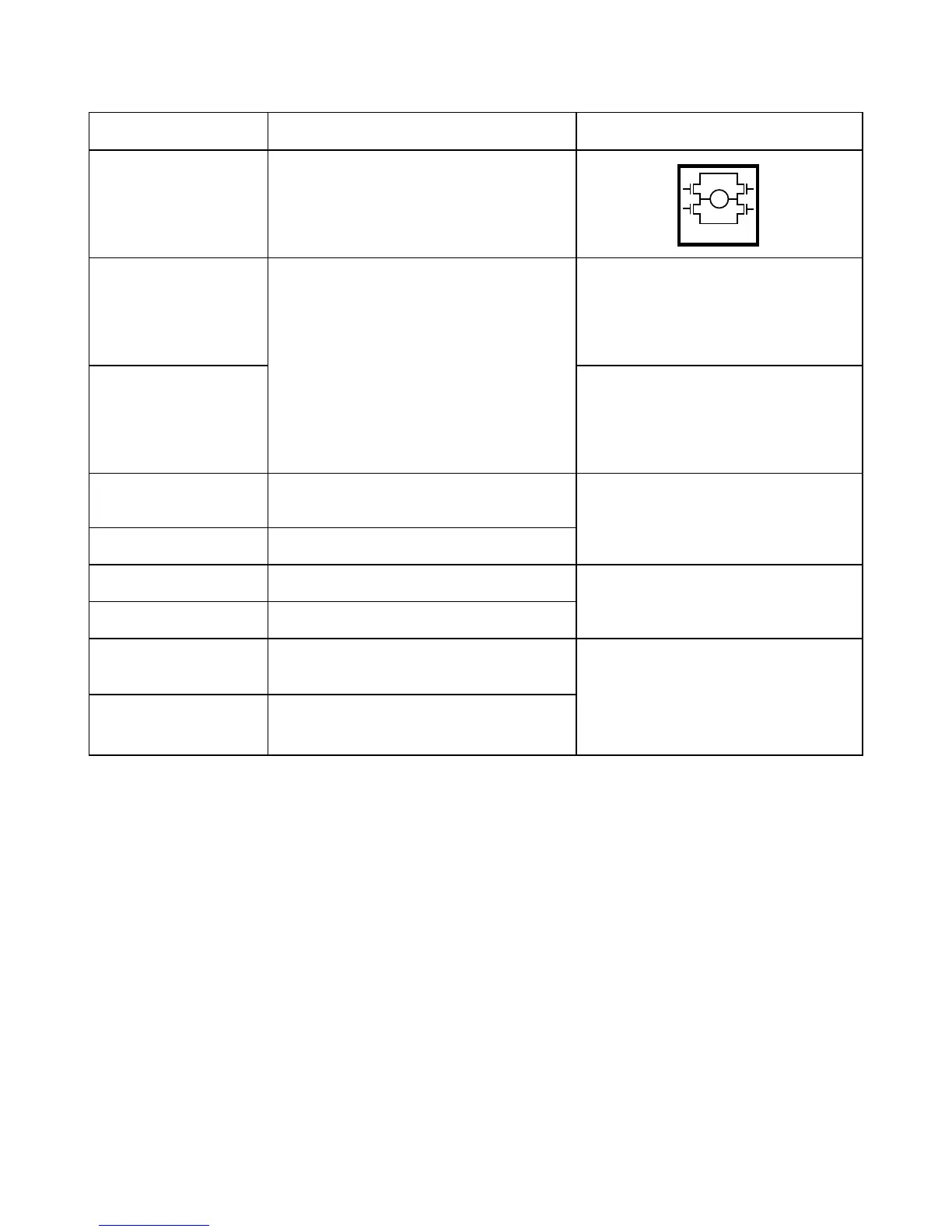

Actuator with old CS36 (H-bridge) version - Dual Hall:
I/O specifications:
Input/Output Specification Comments
Description The actuator can be equipped with
old version of integrated controller.
See connection diagram,
fig. 13, page 35
Brown
Only available with 24VDC (+/-)
24V ± 10%
Under normal conditions:
24V, max. 13A depending on load
No current cut-off available
To extend actuator:
Connect Brown to positive
To retract actuator:
Connect Brown to negative
Blue To extend actuator:
Connect Blue to negative
To retract actuator:
Connect Blue to positive
Red Signal power supply (+)
24VDC
Current consumption:
Max. 40mA, also when the
actuator is not running
Black Signal power supply GND (-)
Green Hall B
Current output for Hall output
(PNP) 12mA
Yellow Hall A
Violet Retracts the actuator On/off voltages:
> 67% of V
IN
= ON
< 33% of V
IN
= OFF
Input current: 10mA
White Extends the actuator
M
H-Bridge
