Page 39 of 76

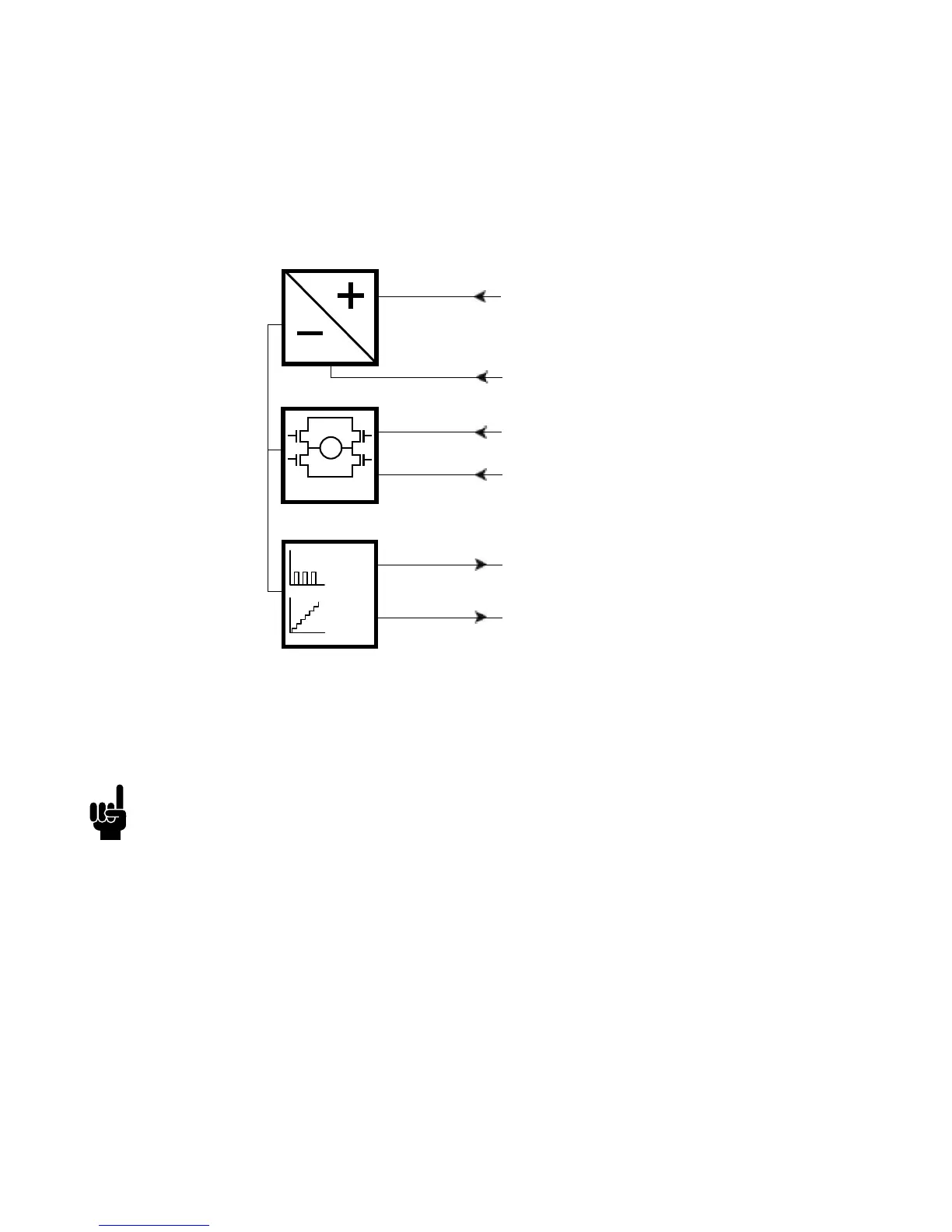

Actuator with IC Basic:
BROWN
BLUE
12/24V DC
Hall
0-10V
WHITE
VIOLET
FEEDBACK
SIGNAL GND
BLACK
RED
INWARDS
OUTWARDS
M
H-Bridge
Connection diagram:
Fig. 15 : 36xxxxx7xxxxxxx
36xxxxxxxx03xx-xxxxxxxxxxxxxxx
Please be aware that if the power supply is not properly connected, you might damage
the actuator!
