Mounting of cables
When changing the cables on a LINAK actuator, it is important that this is done carefully,
in order to protect the plugs and pins. Before the new cable is mounted, we recommend
that the socket is greased with vaseline, to keep the high IP protection and ensure an easy
mounting. Please be sure that the plug is in the right location and fully pressed in before
the cable lid is mounted.
Please note that if the cables are mounted and dismounted more than 3 times the plugs
can be damaged. Therefore, we recommend that such cables are discarded and replaced.
We recommend to take some precaution and design the wire connection in a way, where
the cable end is kept inside a closed, protected area to guarantee the high IP protection.

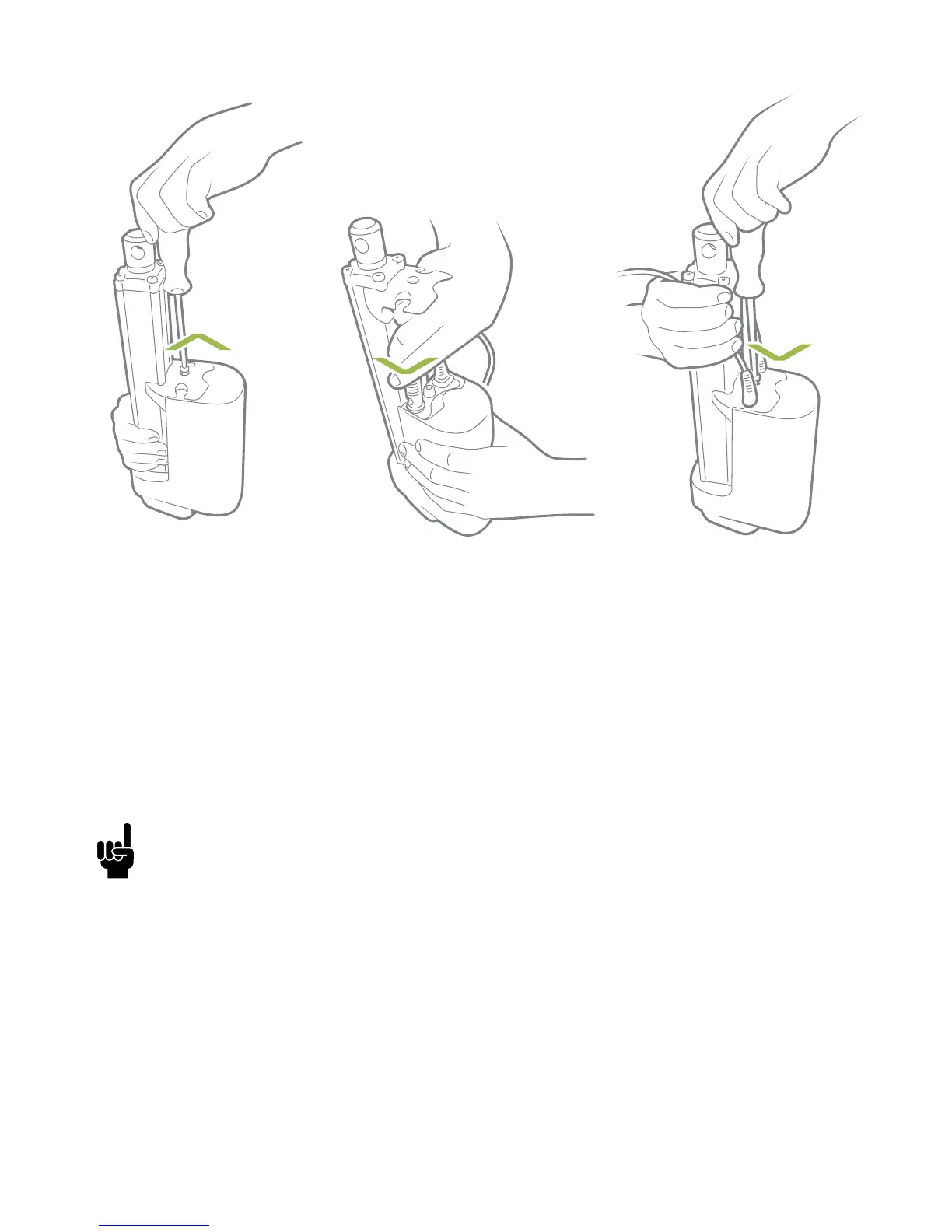

3. Slide the cover onto
the actuator.
The torque of the
cover screw is
approx. 1.5 ± 0.3 Nm
TORX 25IP
1. Unscrew the cover and
remove the two blind
plugs.
2. Plug in the power
cable and/or the
signal cable.
