Correct wiring of Power GND and Signal GND
for IC Basic and IC Advanced:
Please note that this section only applies for the following feedback options:
0-10V, Hall and PWM.

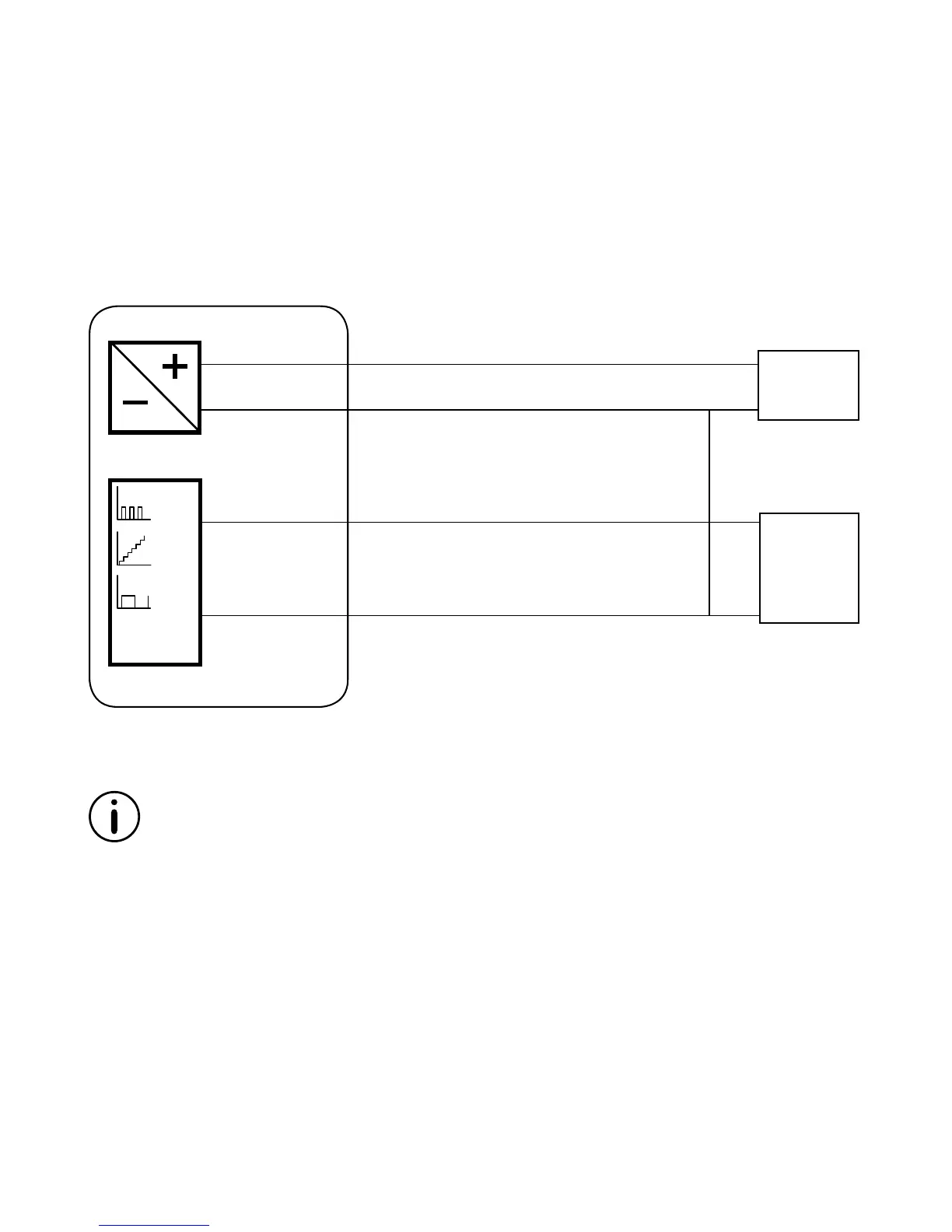

When using the feedback output, it is important to use the right connection setup. Attention
should be paid to the two ground connections. Power GND in the Power connector and Signal
GND in the Control connector. When using either 0-10V, Hall or PWM feedback, the Signal GND
must be used. For optimal accuracy, the Signal GND is connected to the Power GND as close as
possible to the feedback input equipment.
FEEDBACK
SIGNAL GND
