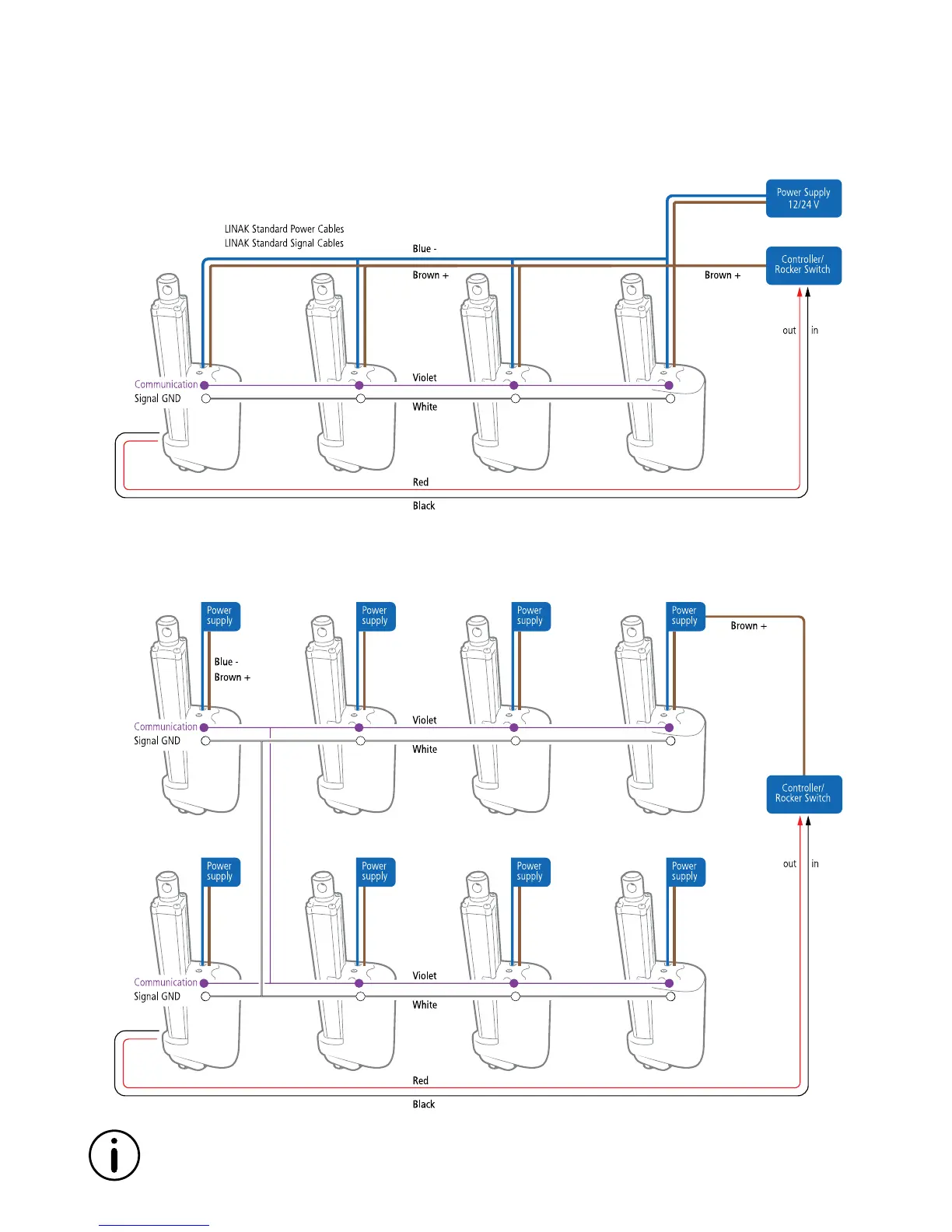

The parallel system:
It is both possible to run parallel with a single power supply, or to run each actuator with separate
power supplies.
The parallel drive function will support a number of actuators working jointly.
The system is self-configurable and when connected, a Master will be dedicated.
The Master will then control up to 7 slaves.
Only standard power and signal cables are available for parallel.
