Key to symbols:
The following symbols are used on the LA36 label:
Symbol Norms Approvals
WEEE Directive 2002/96/EC Wheelie bin
Compliance to all relevant EC directives CE
C-Tick 2002: The Australian EMC C-Tick
China Pollution control mark (also indicates recyclability) China RoHS legislation
ISO 7000- 0434A: Caution
Operating instructions

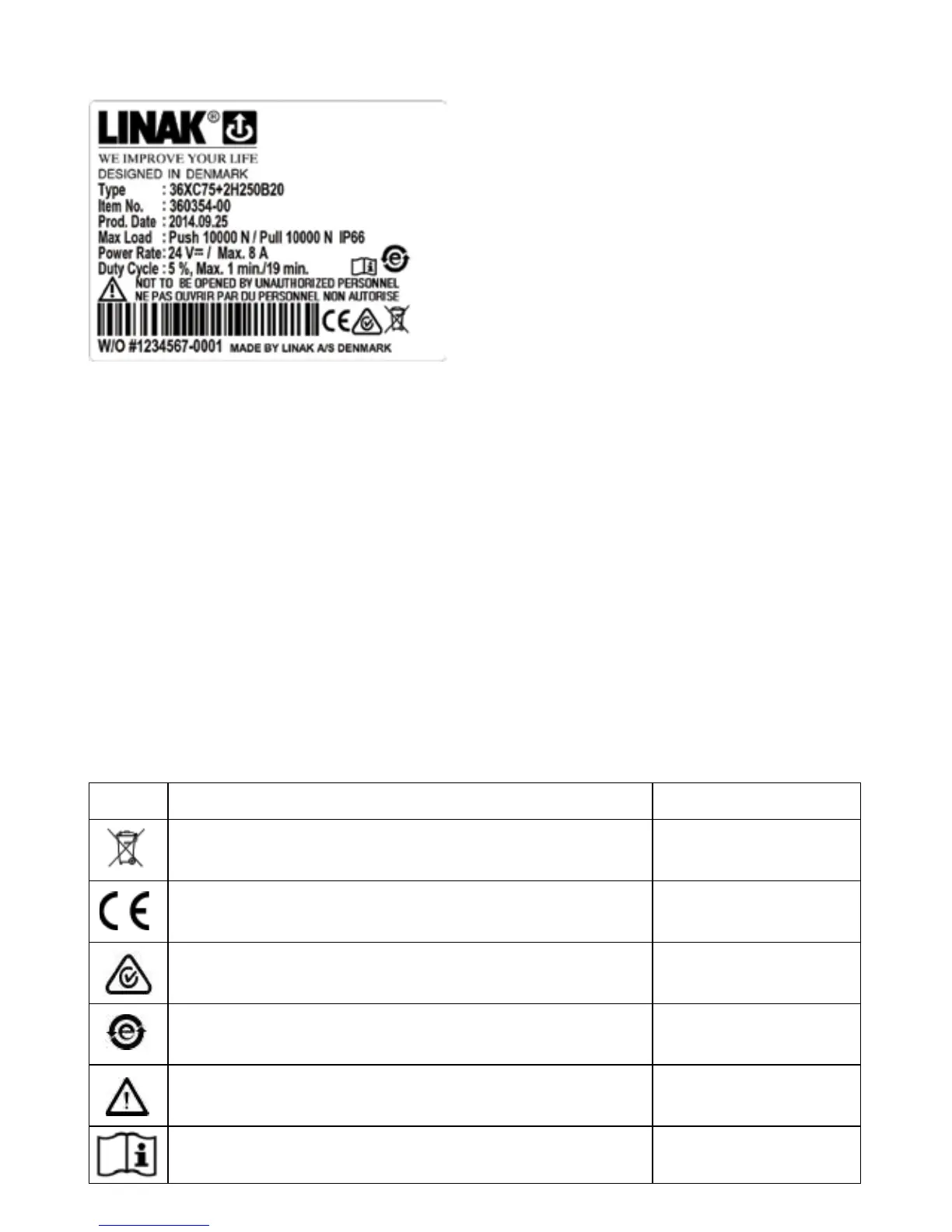

Label for LA36
4. Max Load.: Push 10000N / Pull 10000N IP66
Describes the maximum load that the product can be exposed to in compression and tension.
This line also contains a reference to the product’s IP protection degree
5. Power Rate.: 24VDC / Max. 8 Amp
Input voltage for the product and maximum current consumption
6. Duty Cycle.: 5%, Max. 1 min./19 min.
The duty cycle defines the maximum period during operation without interruption. After
operation, a pause must be observed. It is important that the operator follows the instructions
of the duty cycle; otherwise, a possible overload may result in reduced product life/errors
7. W/O #1234567-0001
The LINAK work order followed by a unique sequential identification number
1. Type.: 36XC75+2H250B20
Describes the basic functionality of the
product
2. Item no.: 360354-00
Sales and ordering code
3. Prod. Date.: YYYY.MM.DD
Production date describes when the
product has been produced. This date is
the reference for warranty claims
