Manual Hand Crank

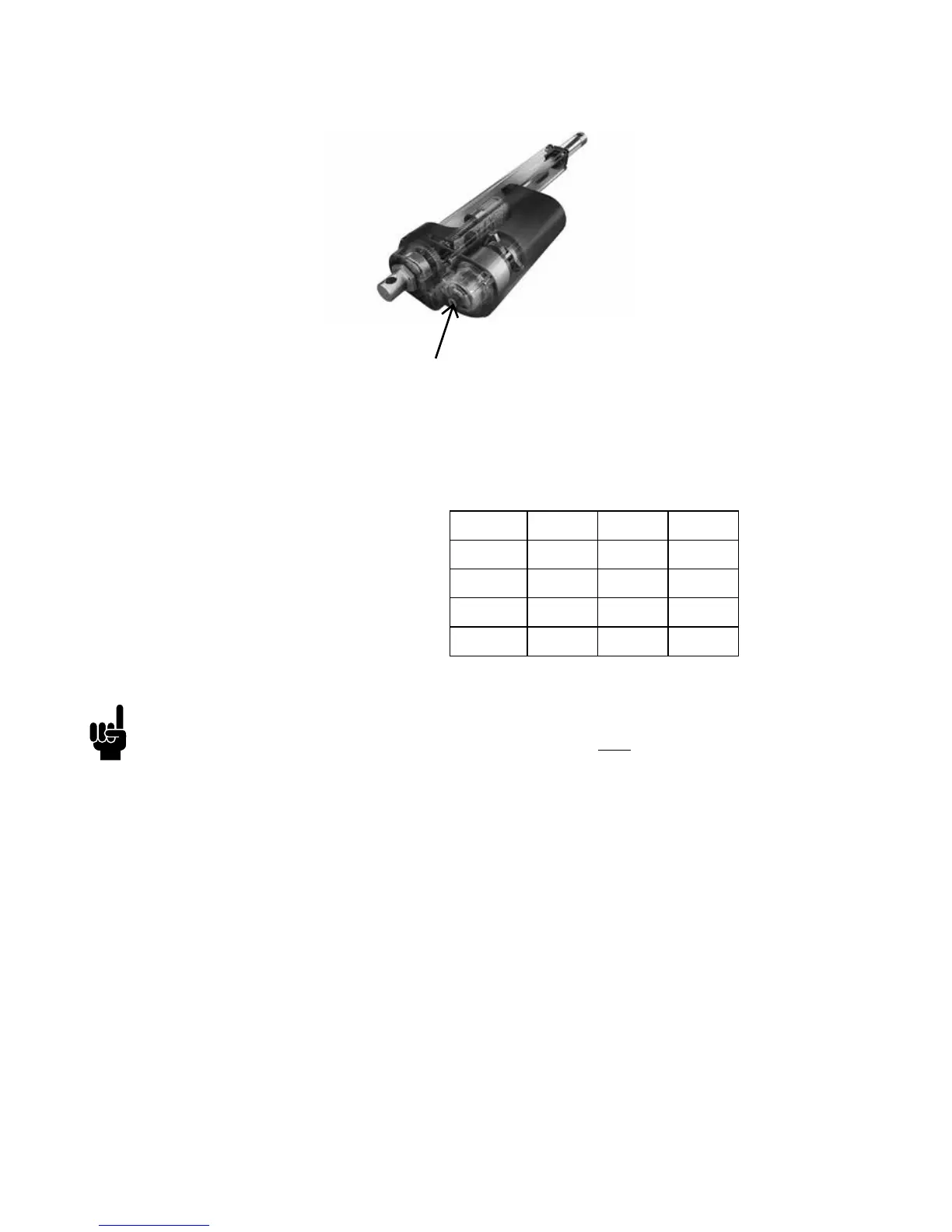

The cover over the Allen key socket must be unscrewed before the Allen key can be
inserted and the hand crank operated.
Hand Crank Torque: 6 - 8 Nm
Piston rod movement per turn, app.:
The manual hand crank can be used in the case of power failure.
• The power supply has to be disconnected during manual operation
• If the actuator is operated as a Hand crank, it must only be operated by hand,
otherwise there is a potential risk of overloading and hereby damaging the actuator.
6 mm Allen key
8 mm 12 mm 20 mm
Gear A - 11 mm 18 mm
Gear B - 6 mm 10 mm
Gear C 3 mm 4 mm 7 mm
Gear F - - 27 mm
