Actuator with endstop signals and relative positioning - Dual Hall:

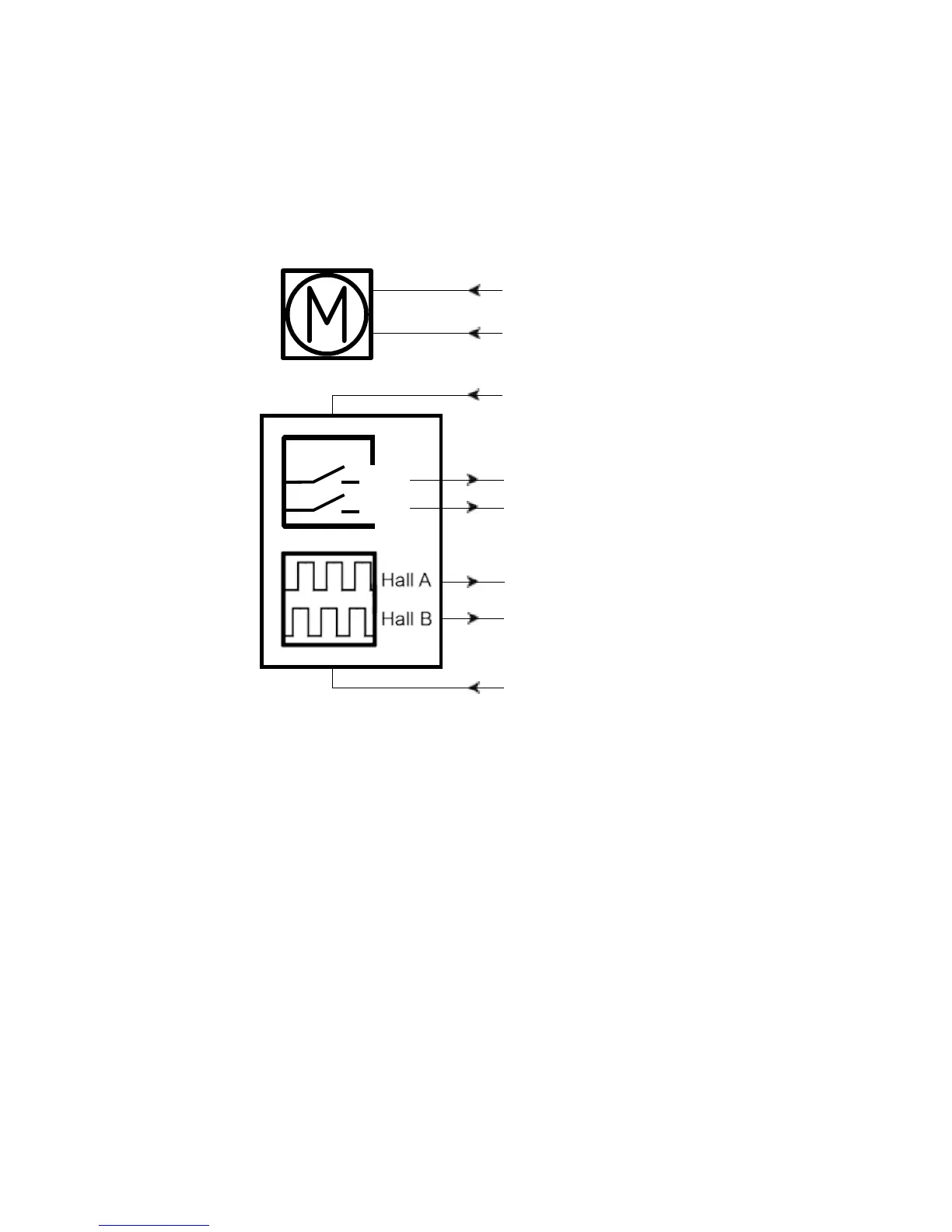

Connection diagram:
Fig. 4 : 36xxxxx2Hxxxxxx
36xxxxxxxH00xx-xxxxxxxxxxxxxxx
BROWN
BLUE
VIOLET*
WHITE*
IN
OUT
RED
YELLOW
BLACK
+
-
GREEN
*VIOLET/WHITE:
Endstop signals out are NOT potential free!
If you wish to use the endstop signals, you will have to keep power on the brown, blue, red and
black wires, otherwise the signal will be lost.
