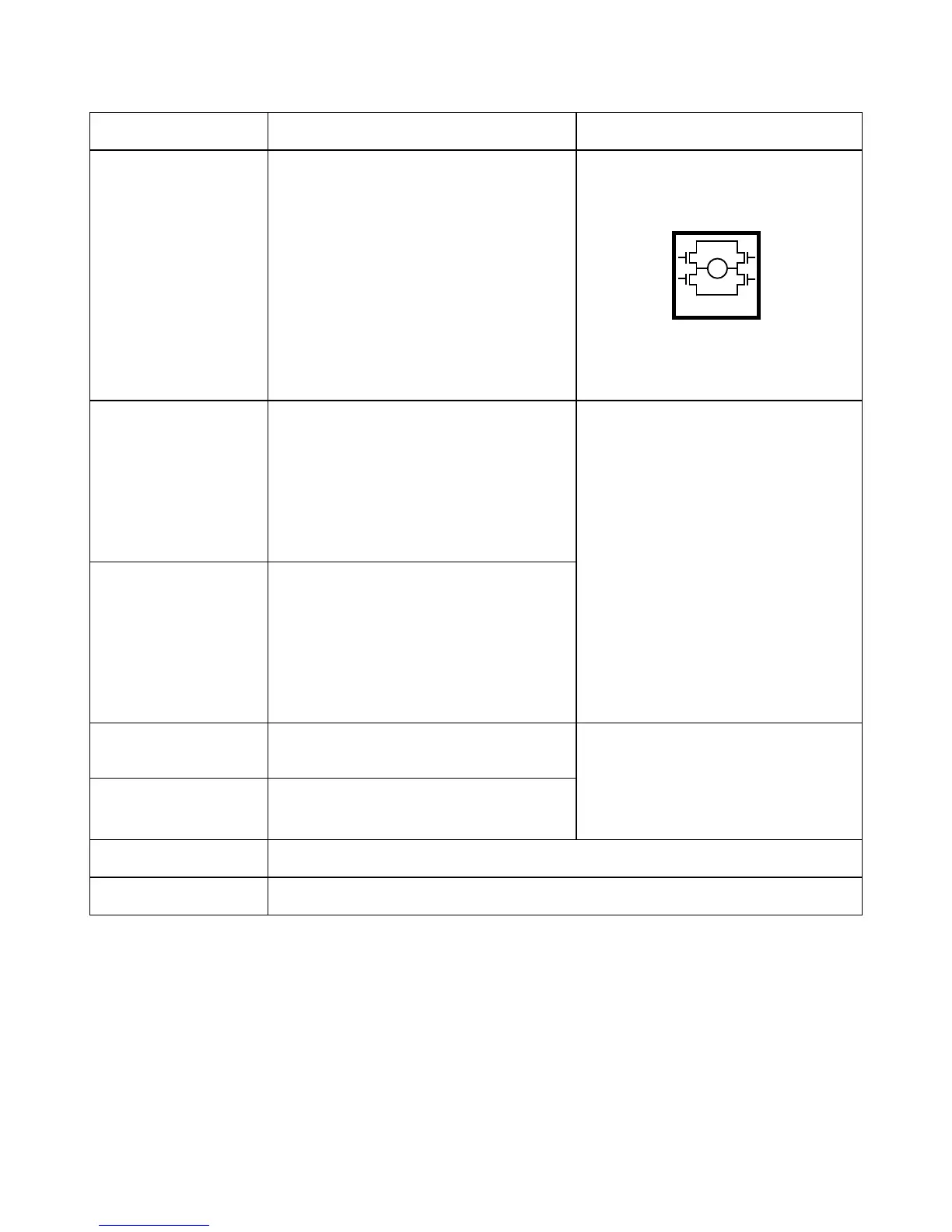

Actuator with IC Basic:
I/O specifications:
Input/Output Specification Comments
Description Easy to use interface with integrated
power electronics (H-bridge).
The actuator can also be equipped
with electronic circuit that gives an
absolute or relative feedback signal.
The version with “IC option”
cannot be operated with PWM
(power supply).
See connection diagram,
fig. 15, page 39
Brown 12-24VDC + (VCC)
Connect Brown to positive
12V ± 20%
24V ± 10%
12V, current limit 25A
24V, current limit 13A
Note: Do not change the power
supply polarity on the brown and
blue wires!
Power supply GND (-) is electrically
connected to the housing
If the temperature drops below
0°C, all current limits will auto-
matically increase to 30A
Blue 12-24VDC - (GND)
Connect Blue to negative
12V ± 20%
24V ± 10%
12V, current limit 25A
24V, current limit 13A
Red Extends the actuator On/off voltages:
> 67% of V
IN
= ON
< 33% of V
IN
= OFF
Input current: 10mA
Black Retracts the actuator
Green Not to be connected
Yellow Not to be connected
M
H-Bridge
