Working on Linde lift mast and at the front of the truck
Working on Linde lift mast and
at the front of the truck
DANGER
When working on the lift mast there is the risk of
staff becoming trapped and/or accidental sinking of
the lift mast.
When the lift mast or fork carriage is lifted, no work
should be performed on the lift mast and at the
front of the forklift truck without the following safety
measures! These safety precautions are sufficient
only for general maintenance on the forklift truck
(inspection and greasing). For repairs (e.g. chan-
ging chains, dismantling lift cylinders), additional
safety precautions must be taken. Please contact
your authorised dealer.

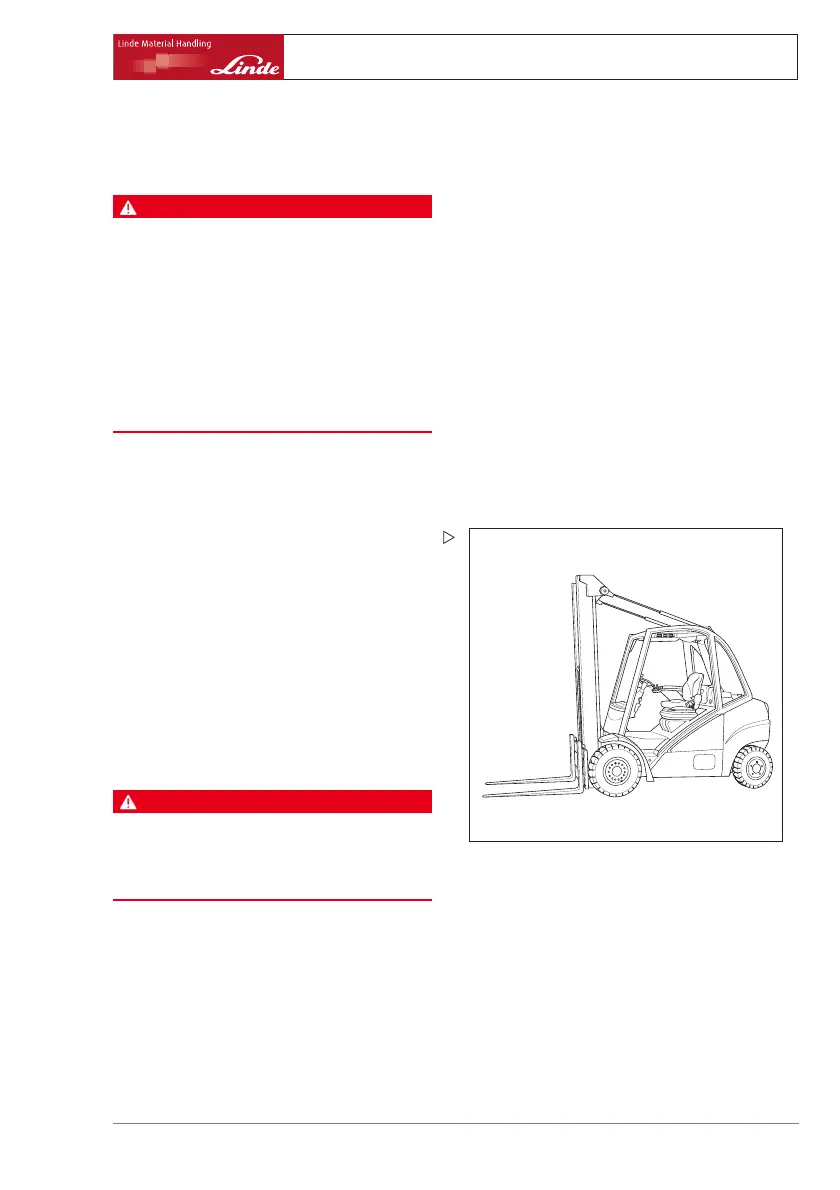

Securing against tilting back
The lift mast must be secured from tilting back
accidentally.
d3921437
¾ Tilt lift mast right back.
¾ Switch off the engine.
¾ Remove the ignition key.
Standard lift mast
FUNCTION: When lifting the inner mast, the
chain rollers are moved up with the chains so
that the fork carriage is lifted with a transmis-
sion ratio of 2:1, due to the chain deflection.
Secure lifted standard lift mast
DANGER
Check chain load!
Select a safety chain with sufficient load bearing
capacity for the lift mast. Take the maximum lift
height into account.
¾ Extend lift mast.
Operating Instructions – 393 807 1001 EN – 08/2008 95
