Maintenance 5
Hydraulics

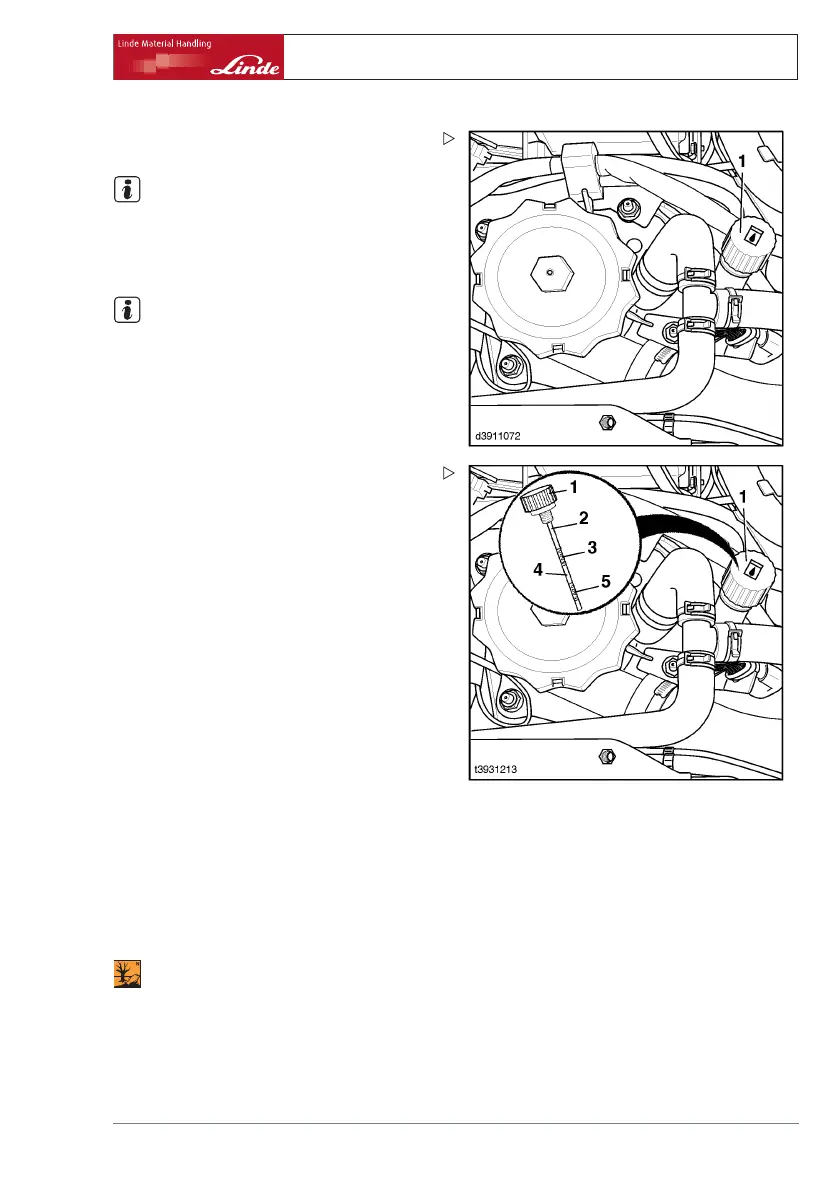

¾ Unscrew the breather filter (1) with oil dip-
stick on the left side of the vehicle.
NOTE
Tank under low pressure. A small a
mount of
air will escape.
¾ Wipe the oil dipstick with a clean cloth.
NOTE
There are 2 markings on the oil dipstick (2)
that are used according to the height of the lift
mast. The various lift heights are stamped into
the dipstick
¾ Only check the marking which applies to
your truck.
• Marking (3) for lift heights of 6900 to 8000
mm.
• Marking (5) for lift he
ights up to 5000 mm.
• Between marking 3 and 5 (4) for lift heights
from 5000 mm to 6900 mm.
¾ Screw the breather filter with oil dipstick in
completely and then unscrew it again.
The oil level shown on th
e dipstick should be
between the two marking
s for the relevant lift
height.
¾ If necessary, add more hydraulic oil until it
reaches the marking for your truck.
The difference in quantity between the max.
and min. mark
for all lift heights is approx. 2 l
Hydraulic system: changing the filter
Feed and pressure filter
ENVIRONMENT NOTE
Observe information regarding working with
consumables.
¾ Unscrew the side maintenance cover on the
left.
Operating Instructions – 393 807 1001 EN – 08/2008 169
