Maintenance 5
Chassis, bodywork and fittings

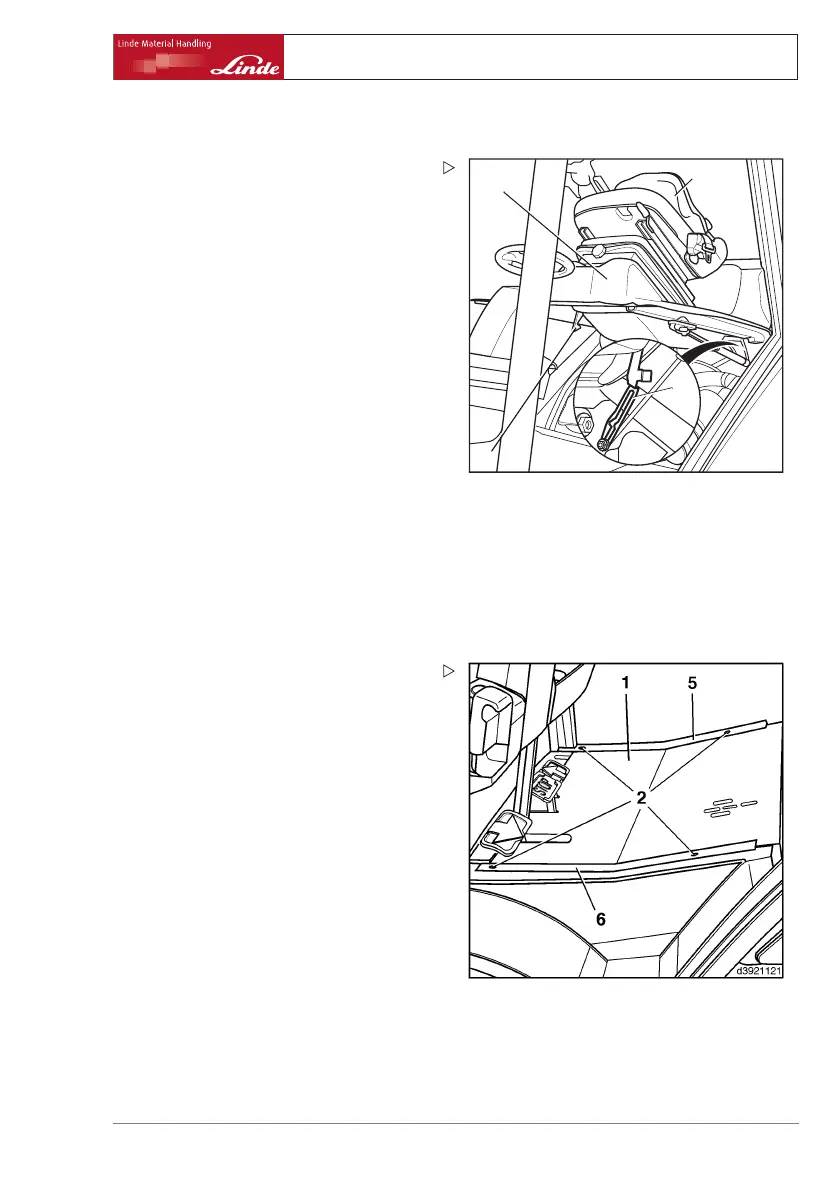

Closing the bonnet
d3921489
4
6
5
7
¾ Release the mounting support (7) by push-
ing it to the rear.
¾ Close the bonnet, then press on i
t until the
locking lever (6) engages.
Floorplate
Opening the floorpl
ate
Some maintenance operations require that
the floorplate is lifted.
¾ Open the bonnet.
¾ Unscrew the fixing s
crews (2) from the floor-
plate.
¾ Remove plates (5) and (6)
¾ Remove the rubber covering from the floor-
plate (1).
¾ Swing the floorplate u
p.
Operating Instructions – 393 807 1001 EN – 08/2008 153
