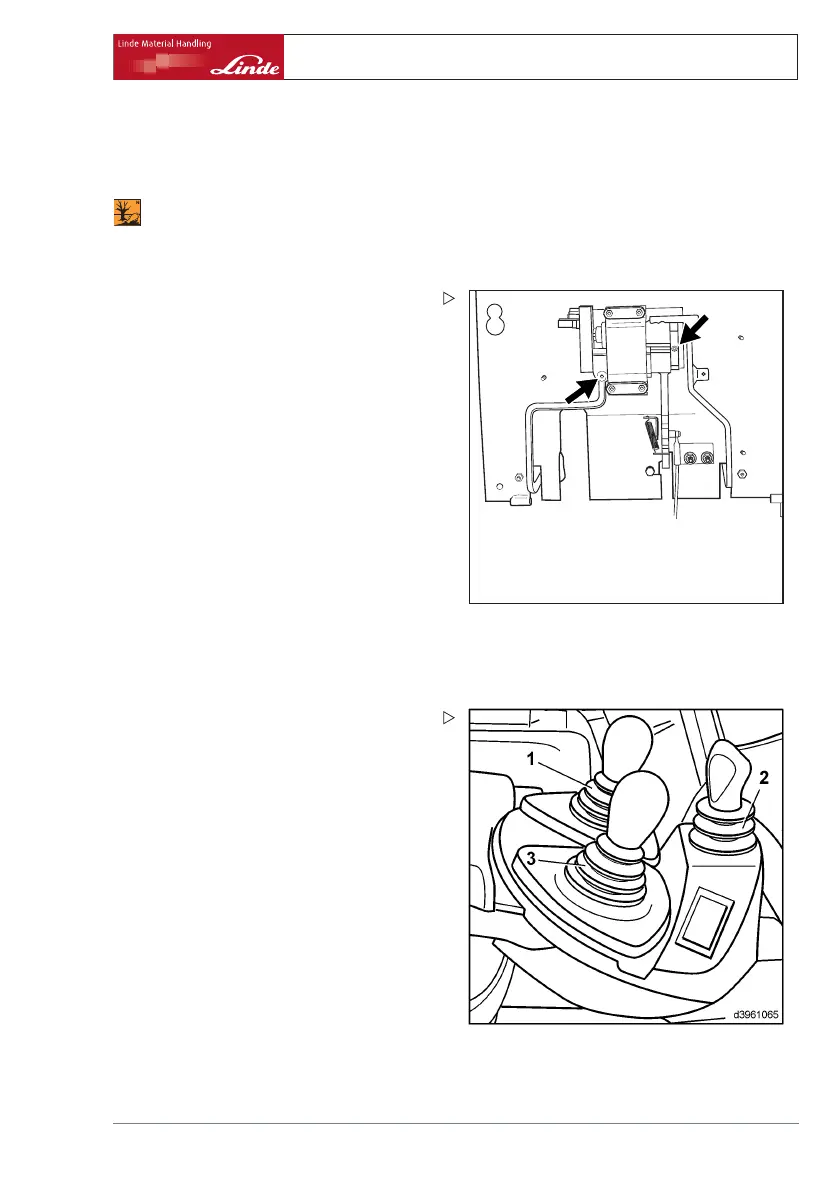

Linde H30D - Controls; Checking the Pedals; Checking the Bellows at the Actuating Lever

Maintenance 5
Controls
Controls
Checking the pedals
ENVIRONMENT NOTE
Observe information regarding working with
consumables.
d3921378
¾ Lift up the floorplate and sec
ureinplace.
¾ Unscrew the 4 nuts of the pedal box.
¾ Check pedals for smooth action.
¾ If necessary, grease the bearin
gs slightly.
¾ Re-attach the pedal box.
Checking the bellows at the actuat-
ing lever
¾ Check that the bellows (1), (2) and (3) (de-
pending on the version) are securely po-
sitioned and show no signs of damage.
Change if necessary.
Operating Instructions – 393 807 1001 EN – 08/2008 163
