4 Operation
Loading / Transporting

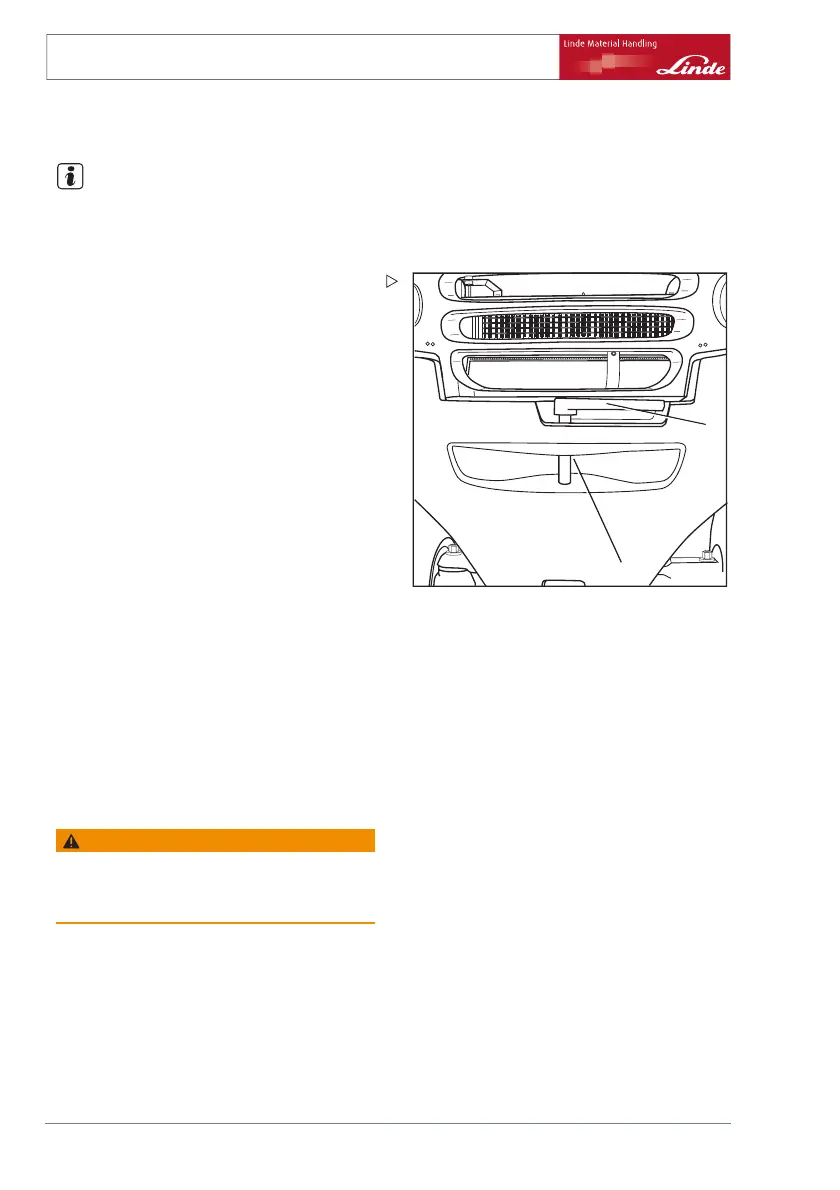

Tow coupling
NOTE
The tow coupling is used only for towing light
trailers inside the plant. (Observe the applica-
ble safety guidelines and VDI.)
d3921373
1
2
¾ Turn the handle ((1)) of the tow pin 90° to
the rear and then lift it up.
¾ Place the drawbar eye into the
coupling
sleeve (2).
¾ Press down the tow pin against spring pres-
sure, turn 90° degrees and let engage in the
retainer.
Loading / Transporting
Securing the hose pulley against
rolling up
When fitting single auxiliary hydraulics, a hose
pulley (1) is located beneath the floorplate
(with double auxiliary hydraulics, a second
hose pulley (5) is fitted in mirror image).
WARNING
The hose pulleys are spring-biased.
This is why they should always be secured against
rolling up:
• Before disconnecting the screw joints of the
hose lines at the connection point to the lift
mast (e.g. to remove the lift mast or remove
the hose pulley itself).
• For all other work on the hose pulleys in the
truck.
86 Operating Instructions – 393 807 1001 EN – 08/2008
