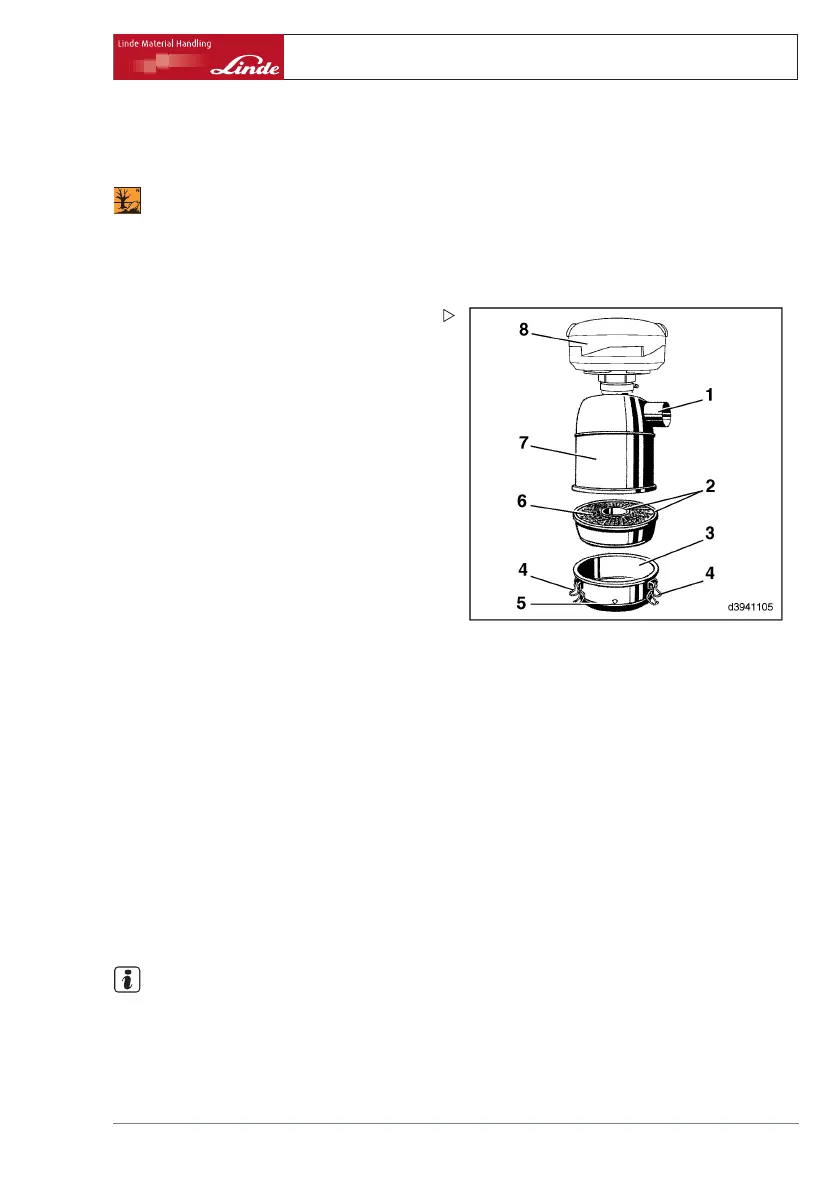

Cleaning the oil bath air filter (special
equipment)
ENVIRONMENT NOTE
Observe information regarding working with
consumables.
¾ Switch off the engine.
¾ Open fasteners (4) on oil tank (3).
¾ Remove oil tank (downwards), then empty
and clean.
¾ Clean and check seals (2) and cha
nge if
damaged.
¾ Loosen the air hose clip on the clean air
connection (1) and remove the hose.
¾ Detach and clean dust collecting tank (8).
¾ Detach upper part of filter (7) o
n overhead
guard.
¾ Wash out upper part of filter and filter insert
with diesel fuel.
The filter and knotted steel inserts can be
cleaned with a steam jet.
¾ Thoroughly dry the cleaned filte
r.
¾ Fit upper part of filter and secure air hose
with hose clip.
¾ Fit the dust collecting tank (8).
¾ Fill the oil tank (3) with engine oi
l as far as
mark (5).
¾ Fit oil tank (3) to upper part of filter (7) , en-
suring that it is correctly positioned, then
secure with fasteners (4).
Change the oil in the oil bath air
cleaner (Optional)
NOTE
An oil change is necessary when the dirt sedi-
ments have reached half of the oil filling, and
at least whenever the filter element is rene-
wed. Do not add oil between the oil change
intervals.
