3 Overview

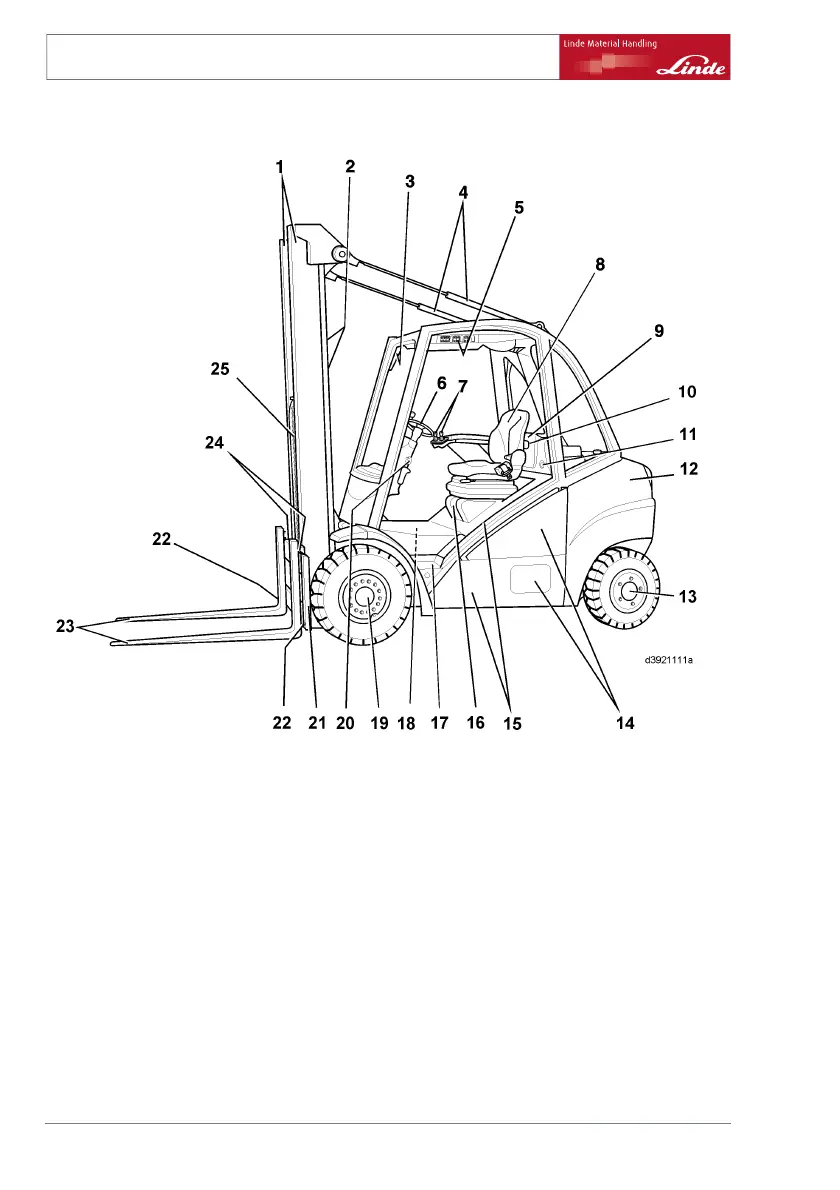

Truck overview
Truck overview
1Liftmast
2 Lift cylinder
3 Indicator unit
4 Tilt cylinders
5 Toggle switch for additional functions
(special equipment)
6 Steering wheel / hydrostatic steering
7 Actuating levers (joystick)
8 Driver’s seat
9 Cover for electrical system
10 Fuses (behind the cover)
11 Diagnostic connector
12 Counterweight
13 Steering axle
14 Maintenance covers
15 Chassis with overhead guard
16 Bonnet
17 Step for entering and exiting the truck
18 Fuses (in the engine compartment)
19 Left-hand wheel motor
20 Clamping screw for adjusting the steering
column
21 Fork carriage
22 Fork arm safety devices
23 Fork arms
24 Fork arm catch
25 Lift mast chain (only with duplex or triplex lift
masts)
18 Operating Instructions – 393 807 1001 EN – 08/2008
