Linde H30D - Checking Fastening for Frame, Tilt Cylinders and Steering Axle; Check and Oil Other Pivots and Joints

5 Maintenance
Chassis, bodywork and fittings
Checking fastening for frame, tilt
cylinders and steering axle
d3921496
2
1
1
2

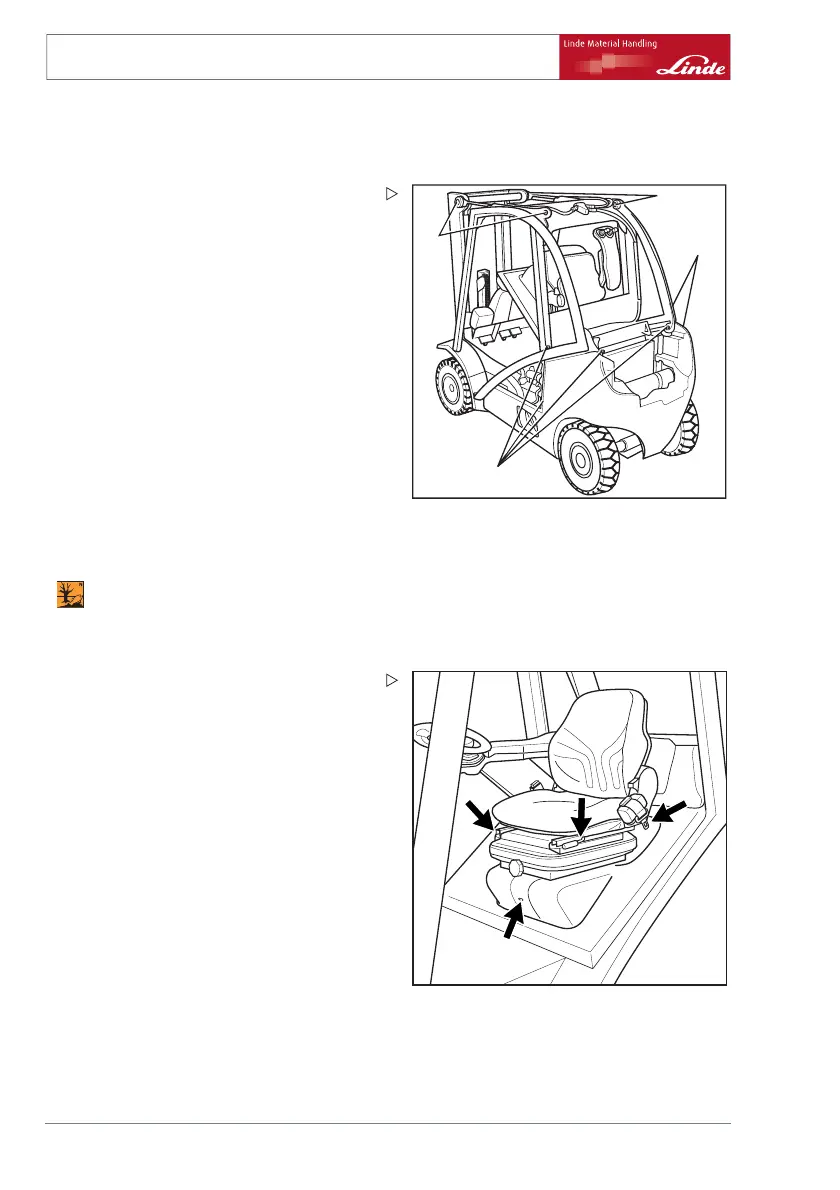

¾ Check 6 fastening bolts (M 24) (1) of frame
have a tightening torque of 660 Nm.
¾ Check the 4 fastening bolts (M16) (2) of the
tilt cylinders with a torque of 275 Nm.
¾ Check the fastening bolts (M1
6) of the steer-
ing axle with a torque of 195 Nm
.
Check and oil other pivots and joints
ENVIRONMENT NOTE
Follow the precautions for handling fluids and
lubricants.
d3921450
¾ Inspect and oil the pivots and mountings of:
• Seat guide
• Bonnet pivot pin
• Wiper mounting (option)
• Cab door hinges and l
ocks (option)
• Grease the bonnet latch.
