5 Maintenance
Load lift system

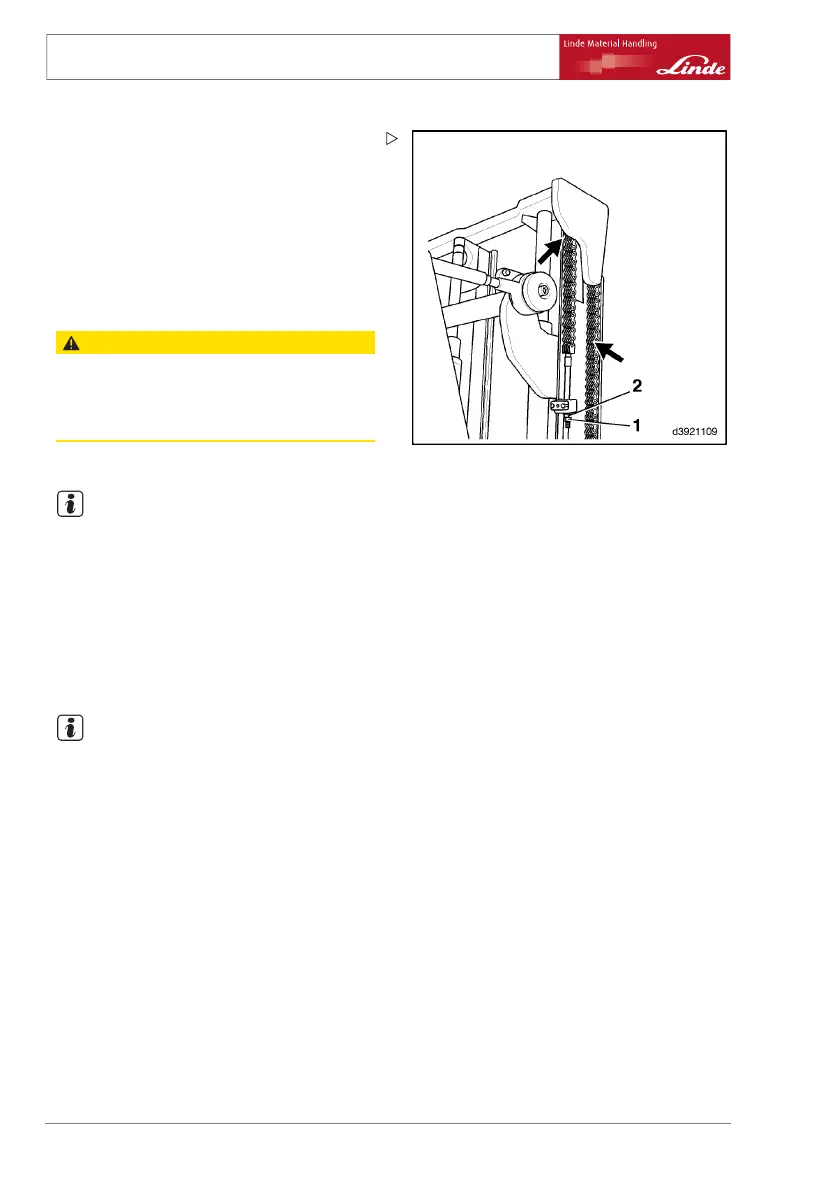

¾ Loosen locknut (1).
¾ Adjust chain at adjustment nut (2) of chain
anchor.
The lower guide roller of the fork
carriage
should only protrude max. 25 mm fr
om the
guide rail of the inner lift mast.
¾ Tighten the locknut (1).
¾ Also adjust second chain.
CAUTION
When extended, the lift mast should not touch the
end stops.
Fully extend lift mast and check clearance to end
stops.
Apply chain spray.
NOTE
In the case of trucks that are used in the food
production sector, chain spray should not be
used. Instead, use a low-viscosity oil licensed
for use in the food industry.
¾ Apply Linde chain spray to guide surfaces
and chain.
Duplex or triplex lift mast
NOTE
The lift mast chain stretches over time during
operation and therefore has to be readjusted.
¾ Lower the lift mast and fork carriage com-
pletely.
178 Operating Instructions – 393 807 1001 EN – 08/2008
