6 Technical data
Load diagrams and lift mast data as at 05/2008

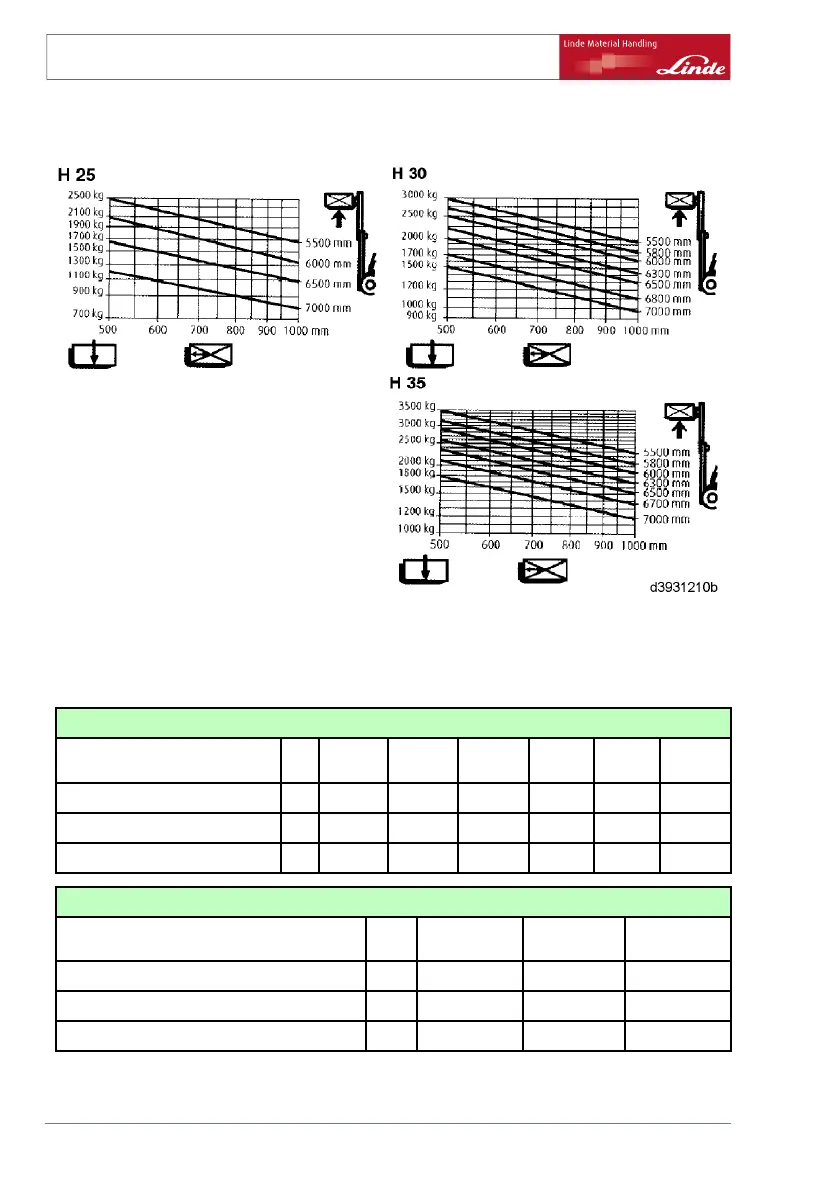

Load diagrams
For standard and duplex masts when fitted as
standard.
Lift mast data
Standard lift mast (in mm)
Overall heights when retracted
with specified free lift
h1 2264 2414 2564 2714 2964 3214
Free lift h2 150 150 150 150 150 150
Lift
h3
3050 3350 3650 3950 4450 4950
Overall height when extended
h4 3840 4140 4440 4740 5240 5740
Duplex lift mast (in mm)
Overall heights when retracted with speci-
fied free lift
h1 2190 2490 2640
Free lift
h2 1424 1724 1874
Lift
h3
3115 3715 4015
Overall height when extended
h4
3905 4505 4805
214 Operating Instructions – 393 807 1001 EN – 08/2008
