Technical data 6
Load capacity diagrams and lift mast data as at 07/2011

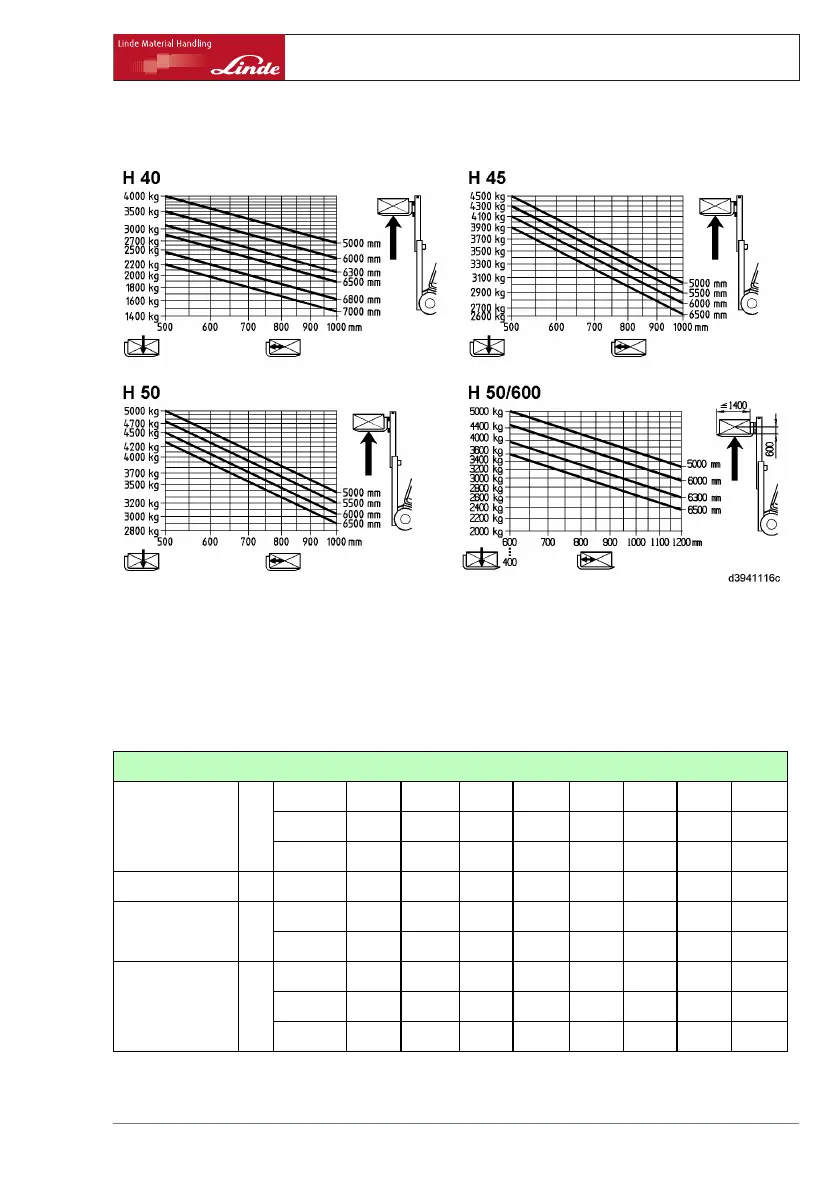

Load capacity diagrams
The load capacity diagrams apply to Standard and Duplex lift masts with solid rubber tyres and a
fork carriage.
Lift mast data
The lift mast data applies to standard equipment with solid rubber tyres and a fork carriage.
Standard lif
tmast(inmm)
H40 2370 2420 2470 2720 2920 3070 3370 3570
H 45/50 2421 2471 2521 2771 2971 3121 3421 3621
Overall heights
when retracted
with specified
free lift
h1
H 50/600 2421 2471 2621 2871 3071 3221 3521
-
Free lift
h2 H 40–50 150 150 150 150 150 150 150 150
H 40–50 3000 3100 3200 3700 4100 4400 5000 5400
Lift
h3
H 50/600 2800 2900 3200 3700 4100 4400 5000
-
H40 3795 3895 3995 4495 4895 5195 5795 6195
H 45/50 3916 4016 4116 4616 5016 5316 5916 6316
Overall height
when extended
h4
H 50/600 3816 3916 4216 4716 5116 5416 6016
-
Operating Instructions – 394 807 10 01 EN – 07/2011 245
